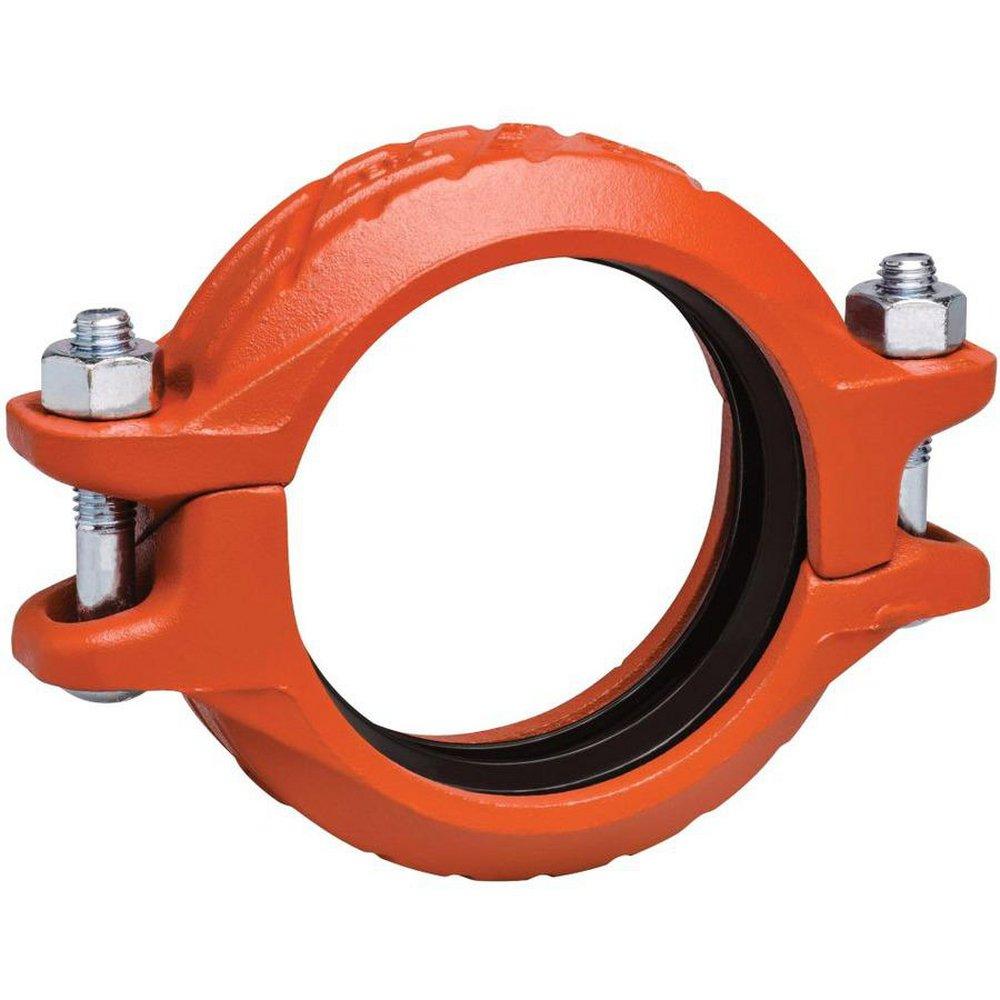

Victaulic L014007PE0 Zero-Flex Style 07 1-1/2 in Coupling

Product Description

The Victaulic Zero-Flex™ Style 07 Coupling, MPN L014007PE0, offers a robust solution for pipe joining in various applications. It is designed for 1-1/2 inch nominal size and is suitable for ductile iron and roll grooved pipe systems. The coupling restricts axial and angular movement while accommodating pressures up to seven hundred fifty psi.

• Constructed from ductile iron with an orange enamel finish
• Features an angled bolt pad for added strength
• Temperature rating ranges from -30 to 230 degrees Fahrenheit

Product Highlights

This coupling is reliable for pipe fitting needs, ideal for both new installations and repairs.

Product Information

Standard Information

• Item Name: Grooved Rigid Coupling with Grade E EPDM Gasket
• Brand: Victaulic

Technical Specifications

• Connection Size: 1-1/2 inch
• Maximum End Load: 2130 lb
• Pressure Rating: 750 psi
• Outside Diameter: 1.9 inch
• Length: 5.81 inches
• Material: Ductile Iron
• Finish: Orange Enamel
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
