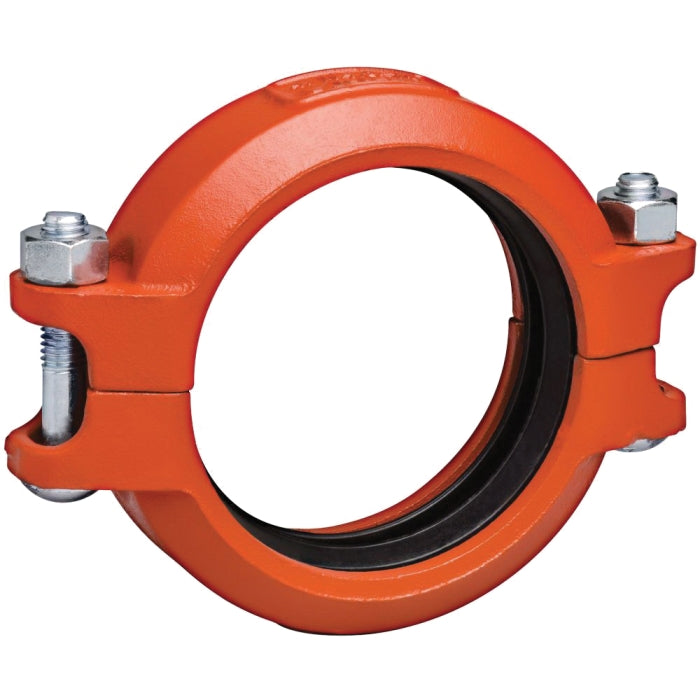

Victaulic L014004PE0 Grooved Flexible Coupling 75/004 1-1/2 in

Product Description

The Victaulic L014004PE0 is a grooved flexible coupling designed for standard roll grooved and cut grooved pipe applications. It is made from ductile iron with an orange enamel finish and features a Grade E EPDM gasket to ensure effective sealing. This coupling is lightweight, offering superior resistance to moderate pressures.

• Maximum pressure rating of 500 psi.
• Connection size of one and a half inches.
• Temperature rating ranging from minus thirty to two hundred thirty degrees Fahrenheit.

Product Highlights

This coupling allows for expansion, contraction, and deflection while maintaining a secure connection.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 75/004
• Material: Ductile Iron
• Finish: Orange Enamel
• Connection Size: 1-1/2 in
• Outside Diameter: 1.9 in
• Length: 4.82 in
• Maximum End Load: 1420 lb
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For use with joins standard roll grooved and cut grooved pipe, as well as grooved fittings, valves, and accessories
