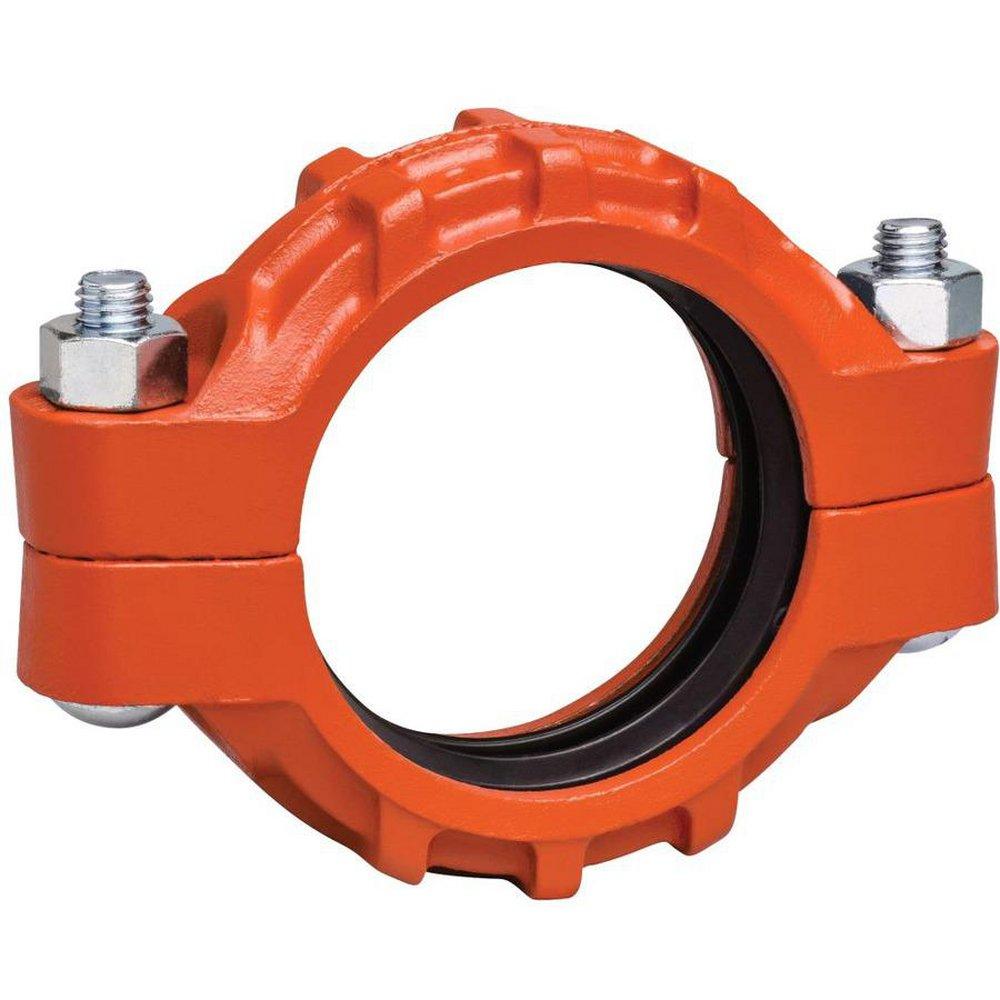

Victaulic L012077PT0 77 Series Standard Flexible Pipe Coupling With Gasket, 1-1/4 in, Grooved

Product Description

The VICTAULIC L012077PT0 is a 77 Series standard flexible pipe coupling with a gasket. Its cross-ribbed construction is designed for higher working pressure and provides flexibility for expansion, contraction, and deflection. It joins standard roll grooved and cut grooved pipe. The coupling is designed exclusively for use with pipe and Victaulic products which feature ends formed with the Victaulic OGS groove profile.

• Joins standard roll grooved and cut grooved pipe.
• Provides a flexible pipe joint that allows for expansion, contraction, and deflection.
• Designed for use with pipe and Victaulic products featuring ends formed with the Victaulic OGS groove profile.

Product Highlights

The Victaulic 77 Series coupling provides flexibility for pipe expansion and contraction, with a cross-ribbed design for higher working pressure.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L012077PT0

Technical Specifications

• End Style: Grooved
• Finish: Orange Enamel
• Fitting/Connector Type: Coupling
• Material: Ductile Iron
• Nominal Size: 1-1/4 In
• Pressure Rating: 1000 psi
• Schedule Rating: SCH 40/STD
• Series: 77 Series
• Type: Standard Flexible
• Coating: Painted
• End Connection 1: Grooved
• End Connections: Grooved
• Fitting Size 1: 1-1/4 in
• Fitting Size 2: 1-1/4 in
• Fitting Sizes: 1-1/4 in
