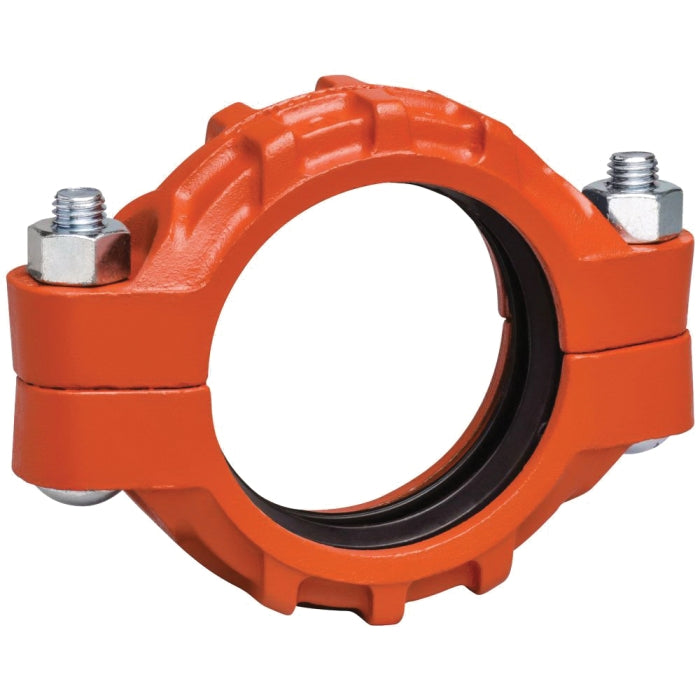

Victaulic L012077PE0 Grooved Flexible Coupling with Grade E EPDM Gasket 1-1/4 IN

Product Description

The Victaulic L012077PE0 is a durable grooved flexible coupling designed for use in plumbing applications. It features a nominal size of one and one-quarter inches and is made from ductile iron. This coupling offers a reliable connection for standard roll grooved and cut grooved pipe.

• Flexible pipe joint allowing for expansion and deflection
• Accommodates pressures from full vacuum to one thousand psi
• Suitable for use with Victaulic products featuring the OGS groove profile

Product Highlights

The coupling includes a Grade E EPDM gasket, providing enhanced sealing capabilities. It includes carbon steel bolts and nuts, ensuring a secure assembly.

Product Information

Standard Information

• Brand: Victaulic
• Model: 77

Technical Specifications

• Connection Size: 1-1/4 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Length: 5 in
• Pressure Rating: 1000 psi
• Temperature Rating: -30 to 230 deg F
• Maximum End Load: 2160 lb
• Outside Diameter: 1.66 in
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
