Product Description

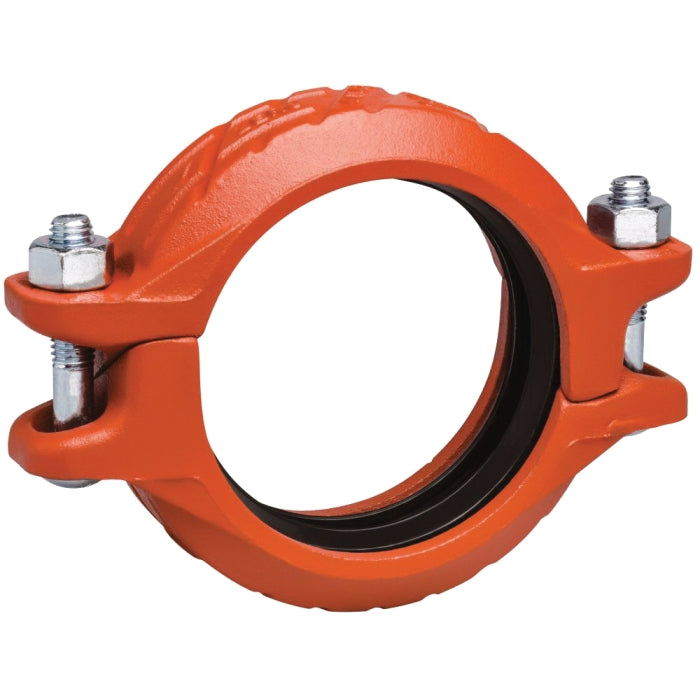

The Victaulic L012007PE0 is a zero-flex grooved rigid coupling made of ductile iron. It features a grade E EPDM gasket and is designed for a connection size of one and one-quarter inches. This coupling accommodates pressure from full vacuum up to seven hundred fifty psi, making it a reliable choice for various piping applications.
- Accommodates pressures from vacuum to 750 psi
- Constructed from ductile iron with an orange enamel finish
- Meets ASME B31.1 and NFPA 13 standards
Product Highlights
This coupling provides strong support and meets industry standards, ensuring safe and effective use in piping systems.
Product Information
Standard Information
-
Brand: Victaulic
-
Sub Brand: Zero-Flex
Technical Specifications
-
Connection Size: 1-1/4 in
-
Finish: Orange Enamel
-
Item Name: Grooved Rigid Coupling with Grade E EPDM Gasket
-
Length: 4.62 in
-
Material Specifications: ASTM A536, Grade 65-45-12
-
Material: Ductile Iron
-
Maximum End Load: 1620 lb
-
Model: 07
-
Outside Diameter: 1.66 in
-
Pressure Rating: 750 psi
-
Temperature Rating: -30 to 230 deg F
-
Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
-
Applications: For use with OGS roll grooved pipe, cut grooved pipe, valves, fittings, and accessories
