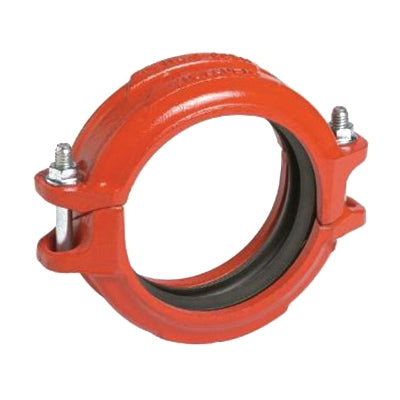

Victaulic L012005PE0 FireLock 005 Orange Enamel Ductile Iron Grooved Rigid Coupling 1-1/4 in

Product Description

The Victaulic L012005PE0 is a FireLock 005 rigid coupling made from ductile iron. It features a unique angle-pad design to ensure the housings can offset while clamping grooves, which improves rigidity. This coupling is specifically designed for fire protection systems, providing robust support for valve connections and straight runs.

• Unique angle pad design enhances rigidity
• Compatible with NFPA 13 sprinkler system standards
• Heat-treated, plated carbon steel bolts for durability

Product Highlights

Efficient assembly with reduced handling of components for ease of installation.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L012005PE0

Technical Specifications

• Application: Fire protection services only
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Connection Size: 1-1/4 in
• Gasket: Grade E EPDM Vic-Plus gasket system
• Bolts: (2) 3/8 x 2-1/4 in
