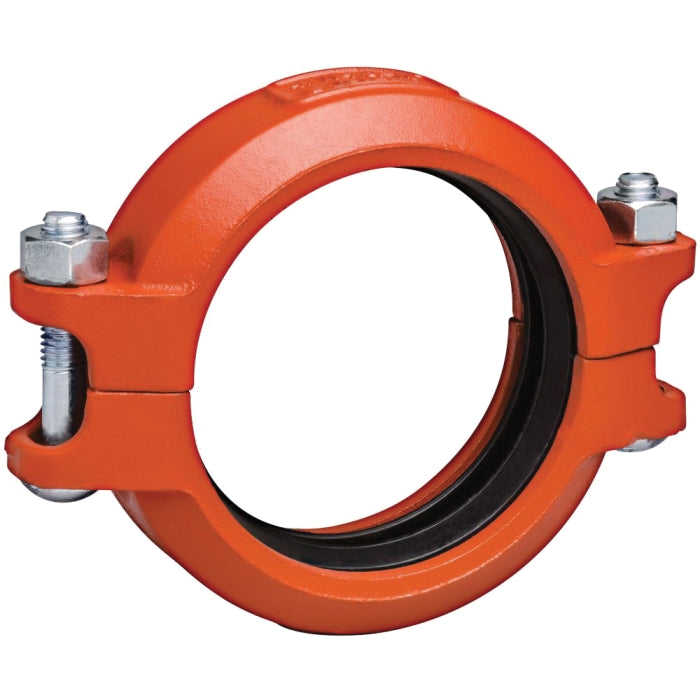

Victaulic L012004PE0 75/004 Orange Enamel Ductile Iron Grooved Flexible Coupling with Grade E EPDM Gasket

Product Description

The Victaulic L012004PE0 is a grooved flexible coupling designed for moderate pressure applications. This coupling is constructed from ductile iron with an orange enamel finish and uses a Grade E EPDM gasket.

• Accommodates pressures from full vacuum to 500 psi
• Weight reduction of up to 50% compared to standard flexible couplings
• Certifications: cULus listed, FM, LPCB, VDS, CTP approved

Product Highlights

This coupling provides a reliable flexible joint for pipe systems, allowing for thermal expansion, contraction, and deflection. It is suitable for use in fire protection systems and other applications requiring durable connections.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI004.114

Technical Specifications

• Connection Size: 1-1/4 in
• Finish: Orange Enamel
• Item Name: Grooved Flexible Coupling with Grade E EPDM Gasket
• Length: 4.61 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 1080 lb
• Model: 75/004
• Outside Diameter: 1.66 in
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
