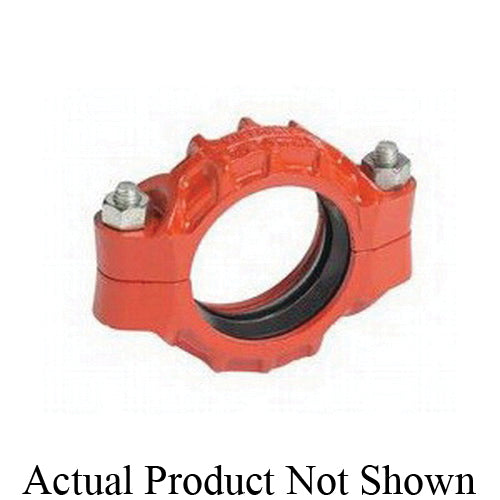

Victaulic L010077GE0 77 Flexible Pipe Coupling With Gasket 1 in Grooved

Product Description

The Victaulic Pipe Coupling, model L010077GE0, is designed for pipeline applications requiring flexibility and durability. It is made to connect standard roll grooved and cut grooved pipes securely. This coupling allows for expansion, contraction, and deflection, which can occur in various temperature conditions.

The construction employs a cross-ribbed design that enables high working pressure of up to 1000 psi. This coupling is suitable for use with stainless steel pipe and includes a Grade E EPDM gasket for reliable sealing.

• Ideal for connecting grooved pipes
• Resilient ductile iron construction with hot dipped galvanized finish
• Compatible with Victaulic OGS groove profile

Product Highlights

Ductile iron flexible coupling designed for high-pressure pipeline systems.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Type: Standard Flexible
• Fitting/Connector Type: Coupling
• Nominal Size: 1 in
• End Style: Grooved
• Material: Ductile Iron
• Length: 4.12 in
• Pressure Rating: 1000 psi
• Schedule Rating: SCH 40/STD
• Dimensions: 1.315 in OD x 1.75 in W
• Series: 77 Series
