Victaulic L010075PE0 75 series flexible pipe coupling with gasket 1 in 500 psi

Product Description

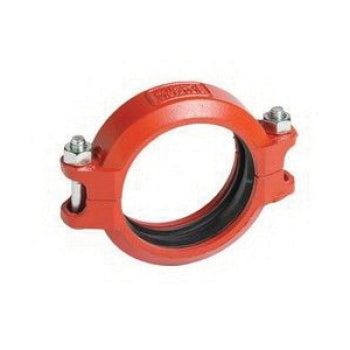

The VICTAULIC L010075PE0 is a flexible coupling designed for use in applications where moderate pressures are expected and weight considerations are important. This 1 inch grooved ductile iron coupling, part of the 75 Series, has a length of 4.27 inches and is rated for a maximum pressure of 500 psi. It features a Grade E EPDM gasket, ensuring a secure connection for various piping systems.

• Grade E EPDM gasket
• Lightweight coupling for moderate pressures
• Heat-treated plated carbon steel bolts/nuts meeting ASTM A-449 and A-183 requirements

Product Highlights

Flexible ductile iron coupling with grooved ends, 1 inch nominal size, 500 psi pressure rating, and Grade E EPDM gasket.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L010075PE0
• Country of Origin: Import

Technical Specifications

• Nominal Size: 1 In
• Connection Type: Grooved
• Length: 4.27 In
• Maximum Pressure: 500 psi
• Material: Ductile Iron
• Finish: Orange Enamel
• Series/Model: 75 Series
• Coupling Type: Flexible
• Gasket Type: E
• Outside Diameter: 1.315 In
• Width: 1.77 In
• Material Standard: ASTM A536 Grade 65-45-12
• Industry Standards: UL And CUL Listed, FM And CTP Approved
• Number of Bolts: 2
• Bolt/Nut Size: 3/8 x 2 In
• Allowable Pipe End Separation: 0 - 0.06 In
• Body Outside Diameter: 2.38 In
• End Load: 680 LB Maximum
