Product Description

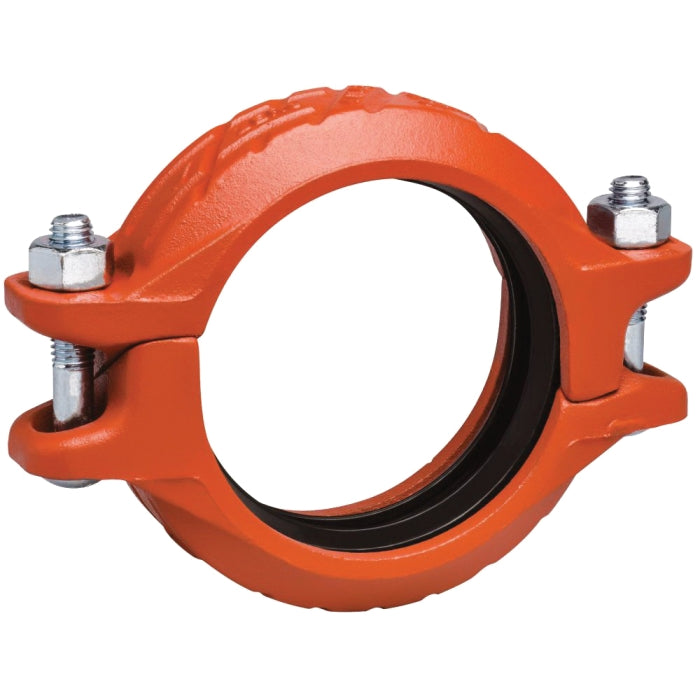

The Victaulic L010007PE0 is a grooved rigid coupling designed for ductile iron pipes. This coupling accommodates joins for OGS roll grooved pipe and cut grooved pipe. It features an EPDM gasket and is made from durable ductile iron. This coupling is suitable for various pressure requirements and meets several industry standards.
- Supports a pressure range from vacuum to seven hundred fifty psi
- Constructed with a grade E EPDM gasket
- Accommodates two track bolts and heavy hex nuts for secure installation
Product Highlights
Ideal for connecting pipes and fittings in HVAC and plumbing systems.
Product Information
Standard Information
-
Brand: Victaulic
-
Part Number: L010007PE0
Technical Specifications
-
Connection Size: 1 in
-
Finish: Orange Enamel
-
Item Name: Grooved Rigid Coupling with Grade E EPDM Gasket
-
Length: 4.22 in
-
Material: Ductile Iron
-
Maximum End Load: 650 lb
-
Model: 07
-
Outside Diameter: 1.315 in
-
Pressure Rating: 750 psi
-
Sub Brand: Zero-Flex
-
Temperature Rating: -30 to 230 deg F
-
Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
-
Applications: For use with joins OGS roll grooved pipe and cut grooved pipe, valves, fittings and accessories
