Product Description

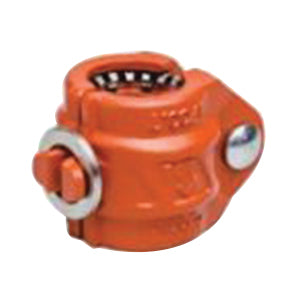

The Victaulic L004P07PE0 is a QuickVic SD Installation-Ready coupling designed for efficient pipe joining. This coupling is made from ductile iron and features a grade EHP EPDM gasket. The connection size is one half inch with a plain end type. The product meets various industry standards which makes it suitable for different applications in piping systems.
- Installation-Ready technology simplifies the coupling process
- Leak-If-Not-Tightened feature ensures proper sealing during installation
- Standards comply with ASME B31.1, B31.3, and B31.9
Product Highlights
This coupling offers a reliable solution for connecting carbon steel pipes in various settings. Its quick installation feature can significantly reduce downtime on job sites.
Product Information
Standard Information
-
Brand: Victaulic
-
Manufacturer: Victaulic
Technical Specifications
-
Connection Size: 1/2 in
-
Connection Type: Plain End
-
Material: Ductile Iron
-
Gasket: Grade EHP EPDM
-
Maximum End Load: 330 lb
-
Outside Diameter: 0.84 in
-
Pressure Rating: 300 psi
-
Temperature Rating: -30 to 250 deg F
-
Standards/Certifications: ASME B31.1, B31.3, B31.9, LPCB approved, ISO 9001:2008 standard
