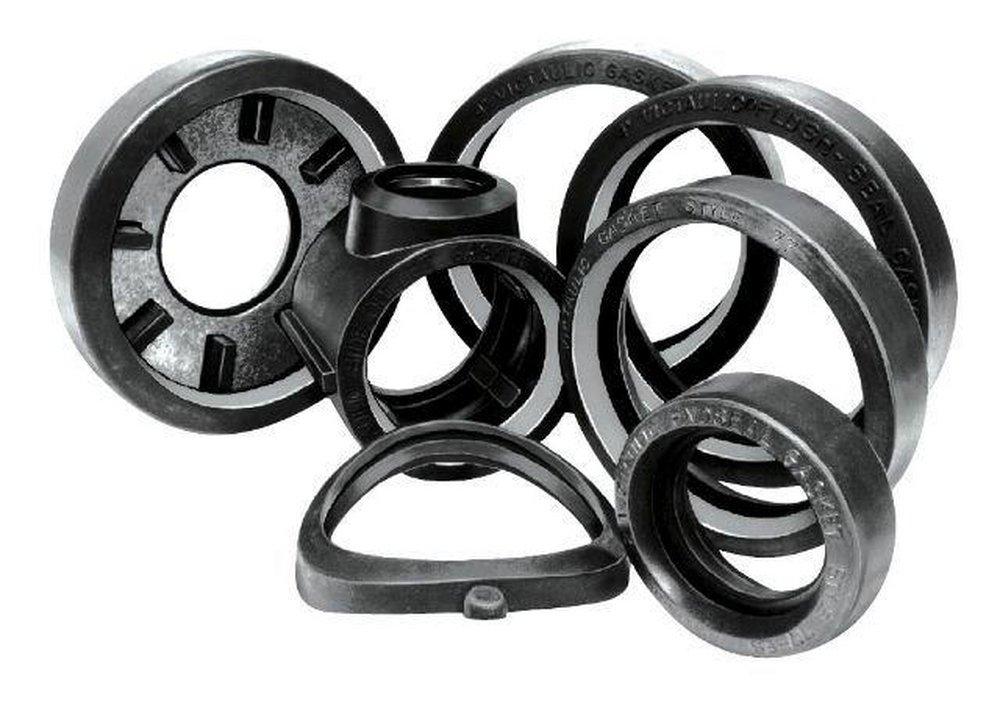

Victaulic G034077LE0 FireLock Style 77 3-1/2 in. Standard Grade E Gasket Only

Product Description

The Victaulic G034077LE0 is a FireLock Style 77 gasket designed for 3-1/2 inch standard flexible couplings. This gasket provides a reliable sealing solution for various piping systems. It is suitable for use with carbon steel, stainless steel, aluminum, PVC, cast iron, and copper.

• Pressures up to 1000 psi / 6895 kPa / 69 bar.
• Temperature range from -30 to 230 degrees Fahrenheit.
• UL listed and ANSI/NSF 61 certified for potable water service.

Product Highlights

This gasket features a cross-ribbed, two-piece housing construction ensuring durability and performance under pressure.

Product Information

Standard Information

• Brand: Victaulic
• MPN: G034077LE0
• UOM: Each
• Material: EPDM

Technical Specifications

• Color: Green Stripe
• Size: 3-1/2 inches
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Type: Grade E
• Applications: For Style 75/77 standard flexible coupling
• Standards/Certifications: UL listed, ANSI/NSF 61 372 certified
