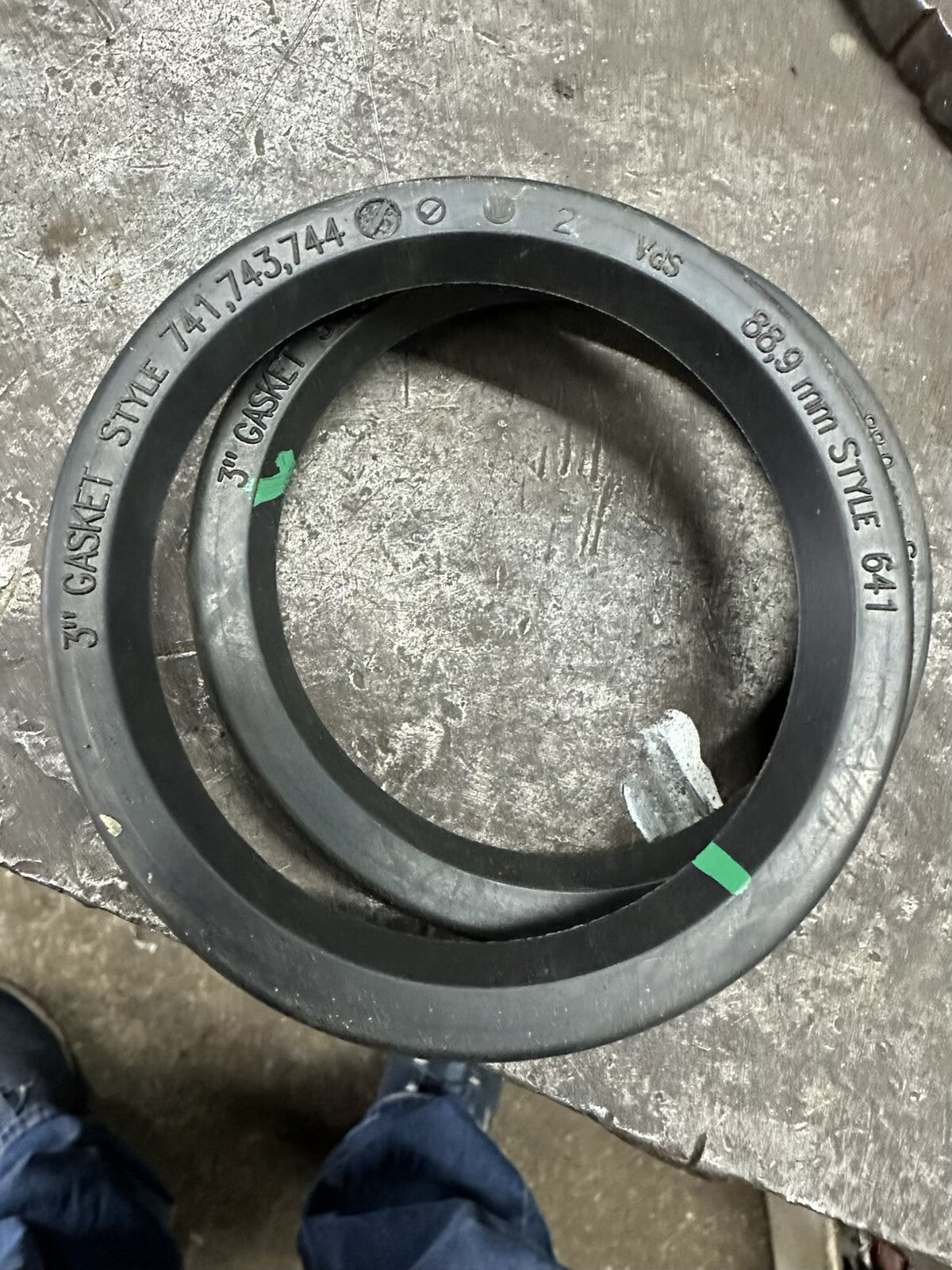

Victaulic G030741LE0 3-1/2 x 3 in. EPDM Gasket

Product Description

The Victaulic G030741LE0 is a 3-1/2 x 3 inch EPDM gasket designed for use with style 741 Vic Flange adapters. This gasket meets various industry standards and certifications for construction materials, making it a reliable choice for plumbing systems.

• Compatible with pressures up to 300 psi / 2068 kPa / 21 bar.
• Available for sizes from two to twenty-four inches.
• UL listed and ANSI/NSF 61 and 372 certified.

Product Highlights

This gasket is essential for maintaining a secure seal in piping systems, particularly when using Vic Flange adapters for installations. It ensures leak-free connections with consistent performance across varying conditions.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: G030741LE0

Technical Specifications

• Size: 3 in
• Material: EPDM
• Type: Grade E
• Temperature Rating: -30 to 230 deg F
• Color: Green Stripe
• Model: 741
• Standards/Certifications: UL listed, ANSI/NSF 61 and 372 certified
• Applications: For style 741 vic flange adapter
