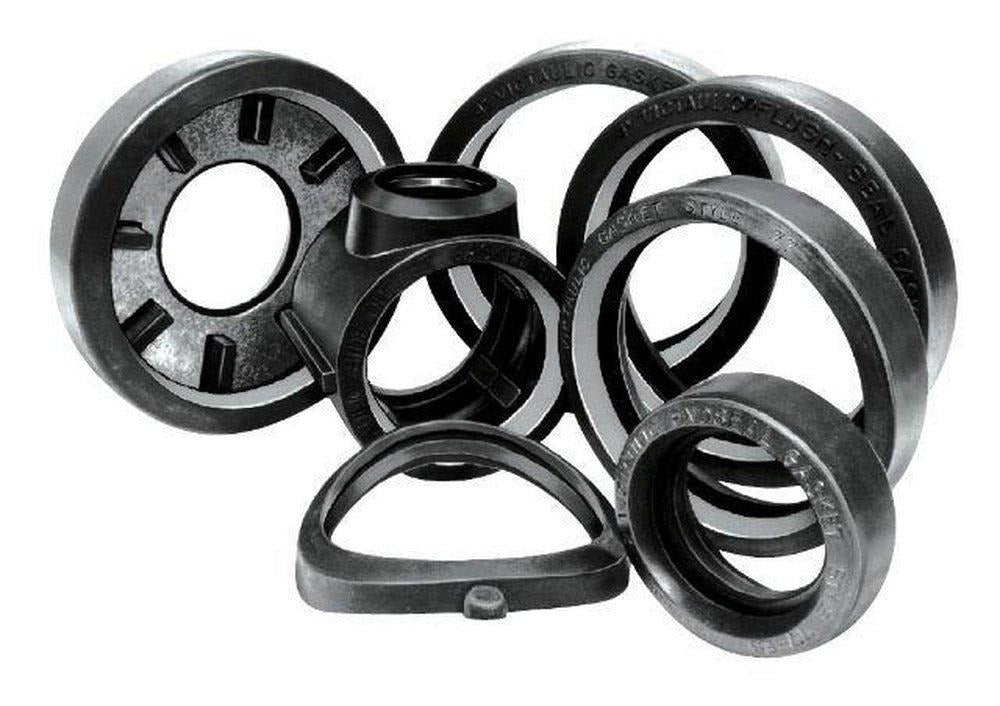

Victaulic G010077LE1 1-31/100 x 1 in. EPDM Gasket (1 in)

Product Description

Victaulic G010077LE1 is an EPDM FlushSeal coupling gasket in a 1 in nominal size. The gasket uses cross-ribbed, two-piece housing construction and is available for sizes from 3/4 in to 24 in (DN20 to DN600). It is rated for pressures up to 1000 psi (6895 kPa / 69 bar) and has a temperature range of −30 to 230 °F (−34 to 110 °C). The gasket is suitable for hot and cold potable water, dilute acids, oil-free air, and many chemical services.

• Material: EPDM, Grade E FlushSeal; temperature rating −30 to 230 °F (−34 to 110 °C)
• Sizes: 3/4 in to 24 in (DN20–DN600); nominal 1 in; pressure rating up to 1000 psi (6895 kPa / 69 bar)
• Construction: Cross-ribbed, two-piece housing; compatible with Styles 07, 75, 77 and 78 couplings; UL/ANSI/NSF certifications

Product Highlights

EPDM Grade E FlushSeal gasket, nominal 1 in, sizes 3/4–24 in, rated to 1000 psi, UL/ANSI/NSF certified

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: G010077LE1

Technical Specifications

• Brand: Victaulic
• Manufacturer Part Number: G010077LE1
• Part Number / Vendor Part: VG010077LE1-NR
• Item Number: 1449174
• Unit of Measure: EACH
• Material: EPDM
• Type: Grade E
• Series: 77 Series / FlushSeal
• Nominal Size: 1 in
• Available Sizes: 3/4 in – 24 in (DN20 – DN600)
• Pressure Rating: Up to 1000 psi (6895 kPa / 69 bar)
• Construction: Cross-ribbed, two-piece housing construction
• Temperature Rating: -30 to 230 °F (-34 to 110 °C)
• Compatible Coupling Styles: Styles 07, 75, 77, 78
• Certifications: UL listed; ANSI/NSF 61; NSF/ANSI/CAN 372
• UPC: 688304465314
• Requires Certification: Yes
