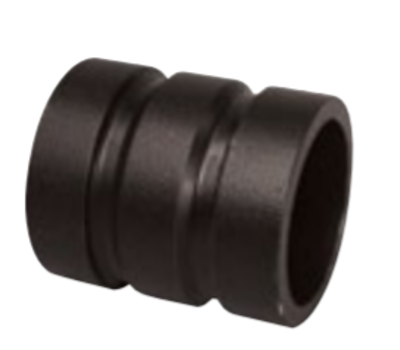

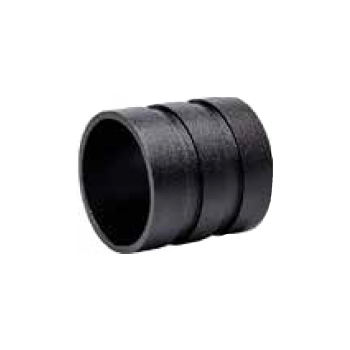

Victaulic FW76143U00 143 Close Nipple 1 x 2-1/2 in

Product Description

The Victaulic FW76143U00 is a close nipple from the 143 Series, designed for use in fire protection systems. This fitting features a 1 inch by 2-1/2 inches size and is built for durability and reliability.

• Convenient one-piece design, compatible with FireLock EZ Style 009N Rigid Coupling.
• Installation is up to four times faster than traditional methods.
• Constructed from ductile iron, it has a maximum working pressure of 365 psi.

Product Highlights

This close nipple provides a robust connection, essential for effective fire protection in various systems.

Product Information

Standard Information

• Brand: Victaulic
• MPN: FW76143U00

Technical Specifications

• Finish: Black Oxide Coated
• Material: Ductile Iron
• Nominal Size: 1 x 2-1/2 in
• Pressure Rating: 365 psi Working
• Series: 143
• Connection Type: Grooved
• Dimensions: 1.315 in Dia x 2.5 in L
• Fitting Type: Straight
• For Use With: 1 in or DN25 Sprinkler Pipes
• Application: Fire Protection Systems
• Maximum Pressure Rating: 365 psi
• Product Type: Standard Length Nipple
• Specifications Met: ASTM A536, Grade 65-45-12, cULus Listed, FM Approved
• Coating: Black Oxide
• End Connections: Grooved
• UL Listed: Yes
• Origin: Domestic
