Product Description

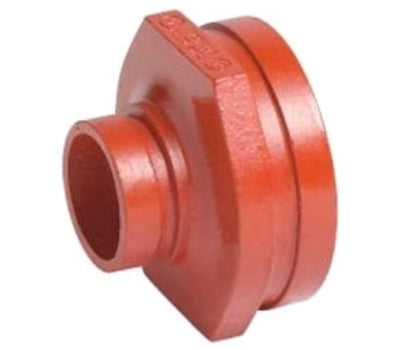

The Victaulic FireLock Style 50 Concentric Reducer, model FE79050P00, is designed for robust and efficient pipe connections. This ductile iron fitting is engineered for lasting performance in diverse piping systems.
- Efficient pipe size transition from 6 inches to 4 inches
- Quick installation with Victaulic Original Groove System (OGS)
- Pressure rated up to 1000 psi for high-performance demands
Product Highlights
Victaulic's Style 50 reducer offers swift alignment and installation without the need for field preparation. This feature, in combination with cULus, CTP, LPCB, and FM approvals, ensures reliability and compliance with rigorous standards.
Product Information
Technical Specifications
-
Material: ASTM A536, Grade 65-45-12 Ductile Iron
-
Connection Type: Grooved
-
Dimensions: Reduces from 6 inches to 4 inches
-
Finish: Orange Enamel
-
Pressure Rating: 1000 psi
-
Certifications: cULus listed, CTP, LPCB, FM approved
-
Applications: Suitable for a range of piping systems, utilizing Victaulic couplings, valves, and accessories
