Victaulic FC40050P0C No. 50 3 x 1-1/2 x 2-1/2 in Grooved 1000 psi

Product Description

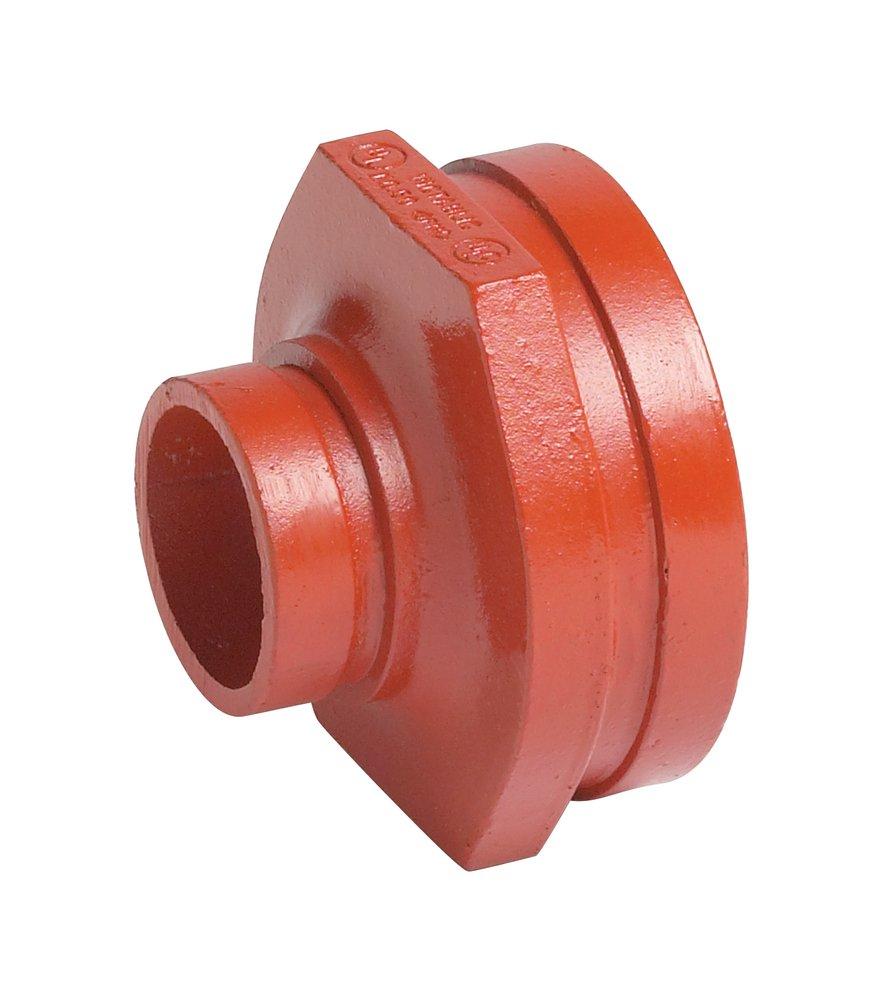

The Victaulic No. 50, MPN FC40050P0C, is a concentric reducer designed for efficient connections in piping systems. This product features a nominal size of three inches by one and one-half inches, with a total length of two and one-half inches. It is constructed of ductile iron with an orange enamel coating, suitable for high-pressure applications up to 1000 psi.

• Connects pipes and allows for size and direction changes.
• Grooved for easy and quick installation.
• Conforms to pressure ratings for Victaulic Style 177N couplings.

Product Highlights

This concentric reducer is ideal for use with Victaulic couplings, valves, and accessories that utilize the Victaulic OGS groove profile.

Product Information

Standard Information

• Brand: Victaulic
• Material: Ductile Iron

Technical Specifications

• Item Name: Concentric Reducer
• Connection Size: Three inches by one and one-half inches
• Connection Type: Grooved
• Pressure Rating: 1000 psi
• Finish: Orange Enamel
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, CTP, LPCB, FM approved
• Applications: For use with Victaulic couplings, valves, and pipe featuring the Victaulic OGS groove profile
