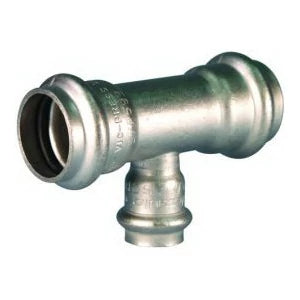

Victaulic FB76593XH5 Vic-Press 304L Stainless Steel Reducing Tee

Product Description

The Victaulic FB76593XH5 is a Vic-Press reducing tee for connecting small diameter Schedule 5S or 10S Type 304 and 304L stainless steel pipes. This fitting is designed to create reliable connections in systems that meet ASME standards for ANSI Class 150. It is compatible with standard ASTM A-312 SCH 10S stainless steel pipe and achieves a secure joint when pressed.

• Designed for Schedule 5S or 10S Type 304/304L stainless steel.
• Complies with ASME requirements for ANSI Class 150 systems.
• Maximum operating pressure of 500 psi / 3447 kPa / 34 bar.

Product Highlights

The Victaulic FB76593XH5 is ideal for plumbing and piping applications requiring durable stainless steel connections.

Product Information

Standard Information

• Brand: Victaulic
• MPN: FB76593XH5

Technical Specifications

• Series: P593
• Fitting Type: Tee
• End Connection 1: Press
• End Connection 2: Press
• End Connection 3: Press
• Fitting Size 1: 2 inches
• Fitting Size 2: 2 inches
• Fitting Size 3: 1.5 inches
• Material: 304 Stainless Steel
• Schedule Class: 10
• Pressure: 500 psi
• Weight: 2 lb
• Outer Diameter: 2.375 inches x 2.375 inches x 1.9 inches
