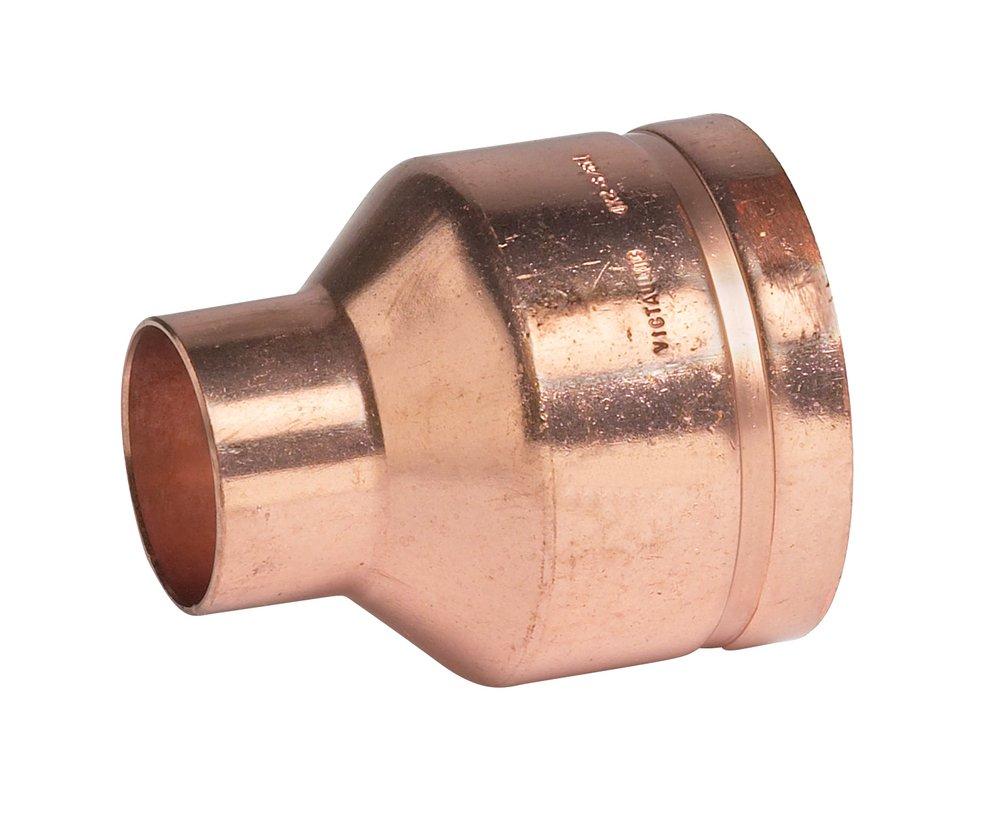

Victaulic FB67652C00 2 X 1-1/2 IN Grooved Copper Concentric Reducer

Product Description

The Victaulic FB67652C00 is a copper concentric reducer designed for use in various piping systems. This reducer allows for a smooth transition between different pipe sizes, specifically from two inches to one and a half inches. Precision-engineered for durability and efficiency, it connects tubing while adapting size and providing a change in direction.

• Full-flow design for improved fluid movement.
• Compatible with Style 607, Style 606 couplings, and Style 641 flange adapters.
• Rated for pressures up to 300 psi.

Product Highlights

This copper concentric reducer is suitable for a variety of plumbing applications, including HVAC and water systems. It is built from high-quality wrought copper, ensuring long-lasting performance and reliability.

Product Information

Standard Information

• Brand: Victaulic
• MPN: FB67652C00

Technical Specifications

• Nominal Size: 2 x 1-1/2 inches
• Connection Type: Grooved x Cup
• Material: Wrought Copper
• Material Standards: ASTM B75, ASTM B152
• Outside Diameter: 2-1/8 x 1-5/8 inches
• Length: 2.94 inches
• Maximum Pressure: 300 psi
• Industry Standards: UL listed, ANSI B16.22, FM approved
