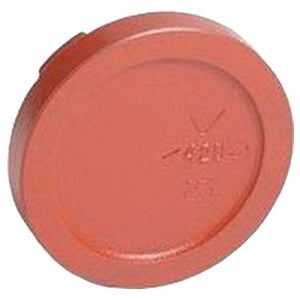

Victaulic F120060P00 Model 60 Orange Enamel Painted Ductile Iron Cap, 12 in Grooved End

Product Description

The Victaulic F120060P00 is a grooved end cap designed for use in various piping applications. Made from ductile iron with an orange enamel finish, this cap provides durability and reliability. It is primarily used to connect pipes and adapt sizes or components. The cap provides a secure seal and is suitable for pressurized systems.

• Constructed from ductile iron for strength
• Pressure rated for 1000 psi
• Meets industry standards including cULus listed, FM and LPCB approved

Product Highlights

This cap connects pipe, allows for a change in direction, and adapts different sizes or components. It is supplied with Victaulic OGS grooves for easy assembly.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: F120060P00

Technical Specifications

• Connection Size: 12 inches
• Connection Type: Grooved
• Finish: Orange Enamel
• Material: Ductile Iron
• Model: 60
• Pressure Rating: 1000 psi
• Material Specifications: ASTM A536, Grade 65-45-12
• Length: 1-1/4 inches
