Victaulic F080V10G00 QuickVic™ V10 Elbow, 8 in, Grooved

Product Description

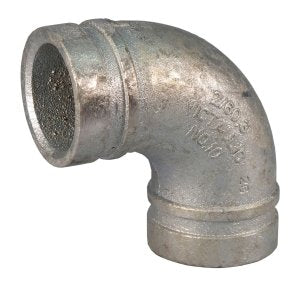

The VICTAULIC F080V10G00 QuickVic™ V10 elbow connects pipe and provides a change in direction. This 90-degree elbow is made of ductile iron with a hot-dipped galvanized finish. It has a grooved end style, a pressure rating up to 400 psi and an OD of 8-5/8 inches.

• Compact, full-flow design optimal for use in tight spaces
• Connects pipe and provides change in direction
• Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation.

Product Highlights

The Victaulic QuickVic™ V10 elbow is designed for fast installation without field preparation.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: F080V10G00
• Country of Origin: Domestic

Technical Specifications

• Dimensions: 8-5/8 in OD
• Domestic/Import: Domestic
• End Style: Grooved
• Finish: Hot Dipped Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Ductile Iron
• Nominal Size: 8 In
• Pressure Rating: Up to 400 psi
• Series: V10
• ASTM: ASTM A-123, ASTM A-536 Grade 65-45-12
• Coating: Hot Dipped Galvanized
• Collection: QuickVic™
• Elbow Degree: 90
• End Connection 1: Grooved
• End Connection 2: Grooved
• End Connections: Grooved
• Fitting Size 1: 8
• Fitting Size 2: 8
• Fitting Sizes: 8 in
