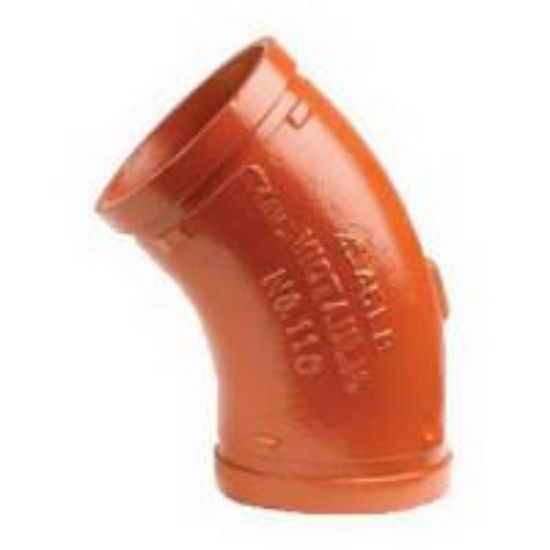

Victaulic F060012P0N 6 inches VIC 12 GRVD 22-1/2 ELL

Product Description

The VICTAULIC F060012P0N is a 6" VIC 12 GRVD 22-1/2 ELL. This FireLock Style 12 grooved fitting allows for fast installation without field preparation. It conforms to the pressure ratings of style 77 couplings and is exclusively for use with Victaulic couplings, valves, accessories and pipe.

• Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation
• Fittings conform to the pressure ratings of style 77 couplings
• Not intended for use with victaulic couplings for plain end pipe

Product Highlights

The VICTAULIC F060012P0N is designed for fire protection applications. It connects pipe sections, provides change in direction and adapts to sizes or components.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: F060012P0N

Technical Specifications

• Finish: Orange Enamel
• Fitting/Connector Type: 22-1/2 deg Elbow
• Nominal Size: 6 In
• Coating: Enamel
• Colour/Finish Category: Oranges
• Colour/Finish Name: Orange
• End Connection: Grooved
• End Connection 1: Grooved
• End Connection 2: Grooved
• Fitting Size 1: 6 in.
• Fitting Size 2: 6 in.
• Fitting Sizes: 6 in. x 6 in.
• Specifications - ANSI: ANSI A21.10;ANSI C606
• Specifications - ASTM: ASTM A-536 Grade 65-45-12;ASTM A-395
• Specifications - AWWA: AWWA C-110;AWWA C-153;AWWA C-606
• Specifications - FM Approved: Yes
• Specifications - NSF: NSF 372;NSF 61
• Specifications - NSF Certified: Yes
• Specifications - UL Listed: Yes
• Style Name: FireLock Style 12
• Application: Fire Protection
• Product Type: Ductile Iron Elbows
• Part #: F060012P0N
• Category: Pipe and Coupling
• Connection Size 1: 6 in
• Connection Size 2: 6 in
• Connection Type 1: Grooved
• Connection Type 2: Grooved
• Connection Type: Grooved
• Fitting Type: Elbows, Reducing Elbows & Bends
• Material Construction: Iron
• Material: Iron
• Pressure Rating: 1000 psi
• Series: 12 Series
