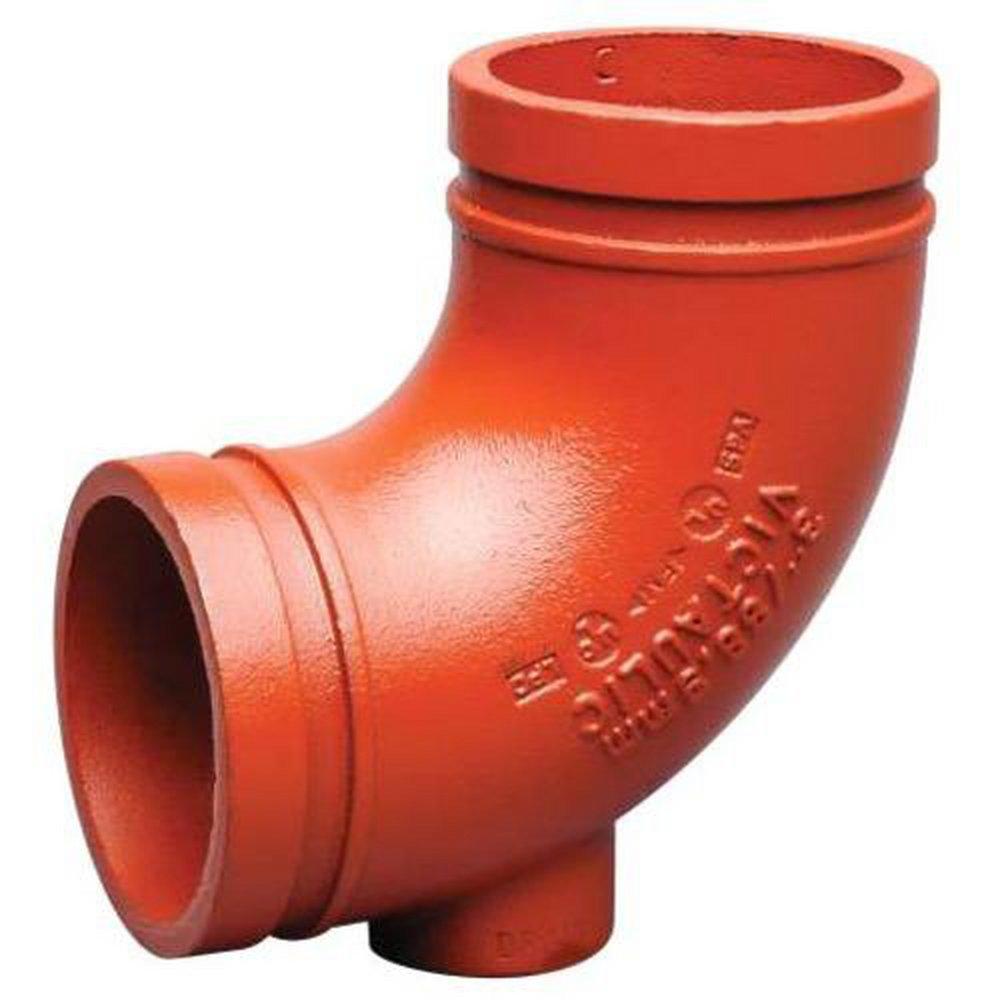

Victaulic F040010PDR FireLock Style 10 4 in. Orange Enamel Ductile Iron Drain Sprinkler Elbow

Product Description

The Victaulic FireLock Style 10 (MPN F040010PDR) is a four-inch elbow fitting specifically designed for drain applications in fire protection systems. This durable ductile iron elbow has grooves for quick installations and is pressure rated up to one thousand psi. It features an orange enamel finish for visibility and corrosion resistance.

• Constructed from ASTM A536, Grade 65-45-12 ductile iron
• Pressure rated for fire protection applications
• Coating options available upon request

Product Highlights

This elbow is efficient for use in fire protection standpipes, providing reliable connections with quick installation due to pre-grooved fittings.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: F040010PDR

Technical Specifications

• Angle: 90 deg
• Connection Size: 4 in
• Connection Type: Grooved
• Finish: Orange Enamel
• Item Name: Elbow with 1 in NPT Drain
• Material: Ductile Iron
• Model: 10-DR
• Pressure Rating: 1000 psi
• Standards/Certifications: UL, ULC listed, FM approved
• Applications: For use on fire protection standpipes
