Victaulic F040003P00 FireLock Style 003 4 in Grooved Orange Enamel Ductile Iron 45 Degree Sprinkler Elbow

Product Description

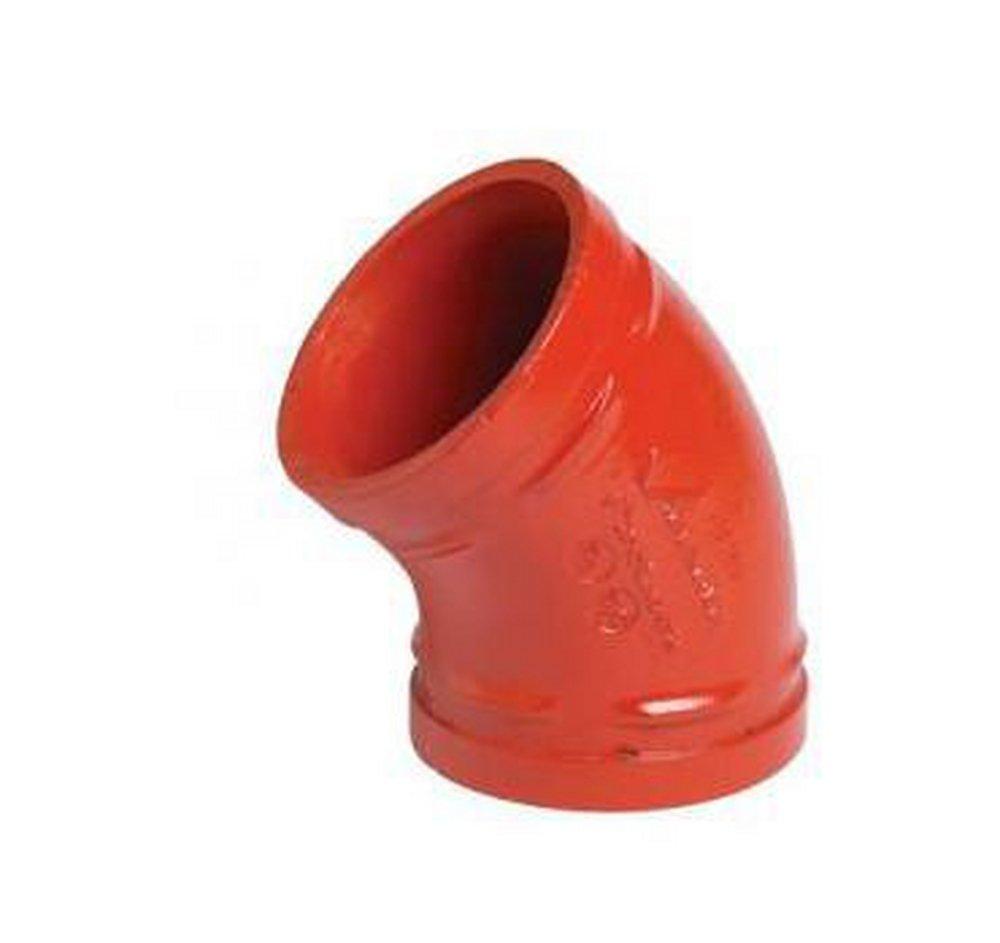

The Victaulic F040003P00 is a 4-inch grooved elbow made from ductile iron. It is designed for fire protection systems and offers a 45-degree angle for effective water flow management.

• Designed for 4-inch grooved connections
• CAD developed hydrodynamic design for reduced center-to-end dimensions
• Constructed from durable ductile iron with an orange enamel finish

Product Highlights

The FireLock Style 003 elbow enhances flow efficiency while maintaining pressure ratings compatible with Victaulic FireLock couplings.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: F040003P00

Technical Specifications

• Angle: 45 degrees
• Connection Size: 4 inches
• Connection Type: Grooved
• Finish: Orange Enamel
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 003
• Pressure Rating: 365 psi
• Sub Brand: FireLock
• Applications: For use exclusively with listed or approved Victaulic couplings for fire protection services
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved, CE EN 10311 Regulation (EU) no. 305/2011, and CCC certified
