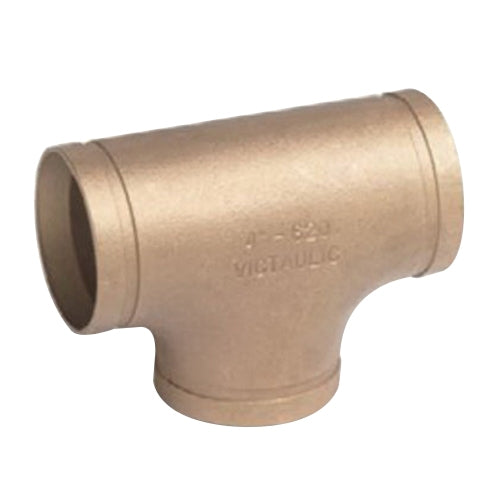

Victaulic F030620C0C Wrought Copper Straight Tee 3 IN Grooved End

Product Description

The Victaulic F030620C0C is a three-inch grooved tee designed for use in copper piping systems. Its construction uses wrought copper and meets industry pressure ratings. This fitting connects tubing, provides changes in direction, and adapts sizes effectively.

• Fitting pressure ratings align with joints using Victaulic style 607 QuickVic and style 641 adapters.
• Constructed from full-flow, standard radius bronze castings and copper.
• Certified to cULus standards, ANSI/NSF 61 and 372.

Product Highlights

This tee is vital for joining copper pipes in various plumbing applications. It is both functional and compliant with necessary safety standards.

Product Information

Standard Information

• Brand: Victaulic
• Model: 620

Technical Specifications

• Connection Size: 3 in
• Connection Type: Grooved
• Material: Wrought Copper
• Length: 7.04 in
• Pressure Rating: 300 psi
• Method of Manufacturer: Cast
• Material Specifications: UNS C89836
• Standards/Certifications: cULus listed, ANSI/NSF 61 and 372 certified
