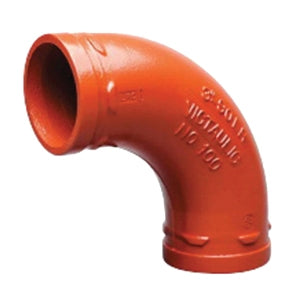

Victaulic F024100P00 Long Radius Elbow 90 deg 2-1/2 in

Product Description

The Victaulic F024100P00 is a long radius elbow designed for effective pipe connections and direction changes. This product is made from ductile iron with an orange enamel finish, meeting industry standards for strength and durability. The elbow features grooved connections, allowing for easy installation with Victaulic couplings and fittings.

• Connects pipe and provides direction changes.
• Supplied with Victaulic OGS grooves.
• Rated for pressures up to 1000 psi.

Product Highlights

This elbow is suitable for various applications in mechanical systems, ensuring a reliable connection where necessary.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: F024100P00

Technical Specifications

• Type: Long Radius
• Angle: 90 deg
• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Material: Ductile Iron
• Finish: Orange Enamel
• Model: 100
• Pressure Rating: 1000 psi
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, CTP, LPCB, FM approved
• Applications: For use with Victaulic couplings, valves, accessories, and pipe with Victaulic OGS groove profile.
