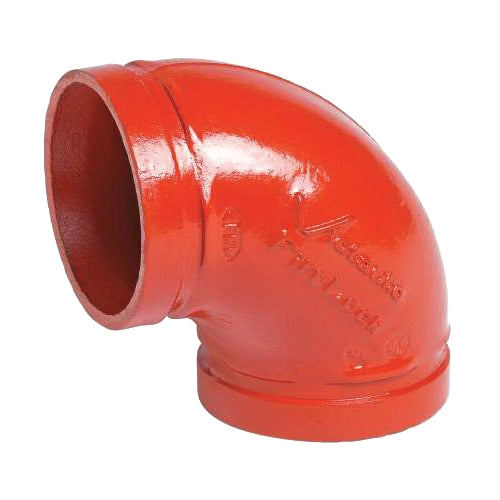

Victaulic F024001P00 FireLock 001 Orange Enamel Ductile Iron 90 Deg Elbow 2-1/2 in Grooved

Product Description

The Victaulic F024001P00 is a FireLock 001 orange enamel ductile iron elbow designed for fire protection applications. This fitting connects pipe and facilitates a change in direction with a 90-degree angle. It is suited for use with Victaulic couplings that are listed or approved for fire protection services.

• 90-degree angle for smooth directional change.
• Constructed from ductile iron for durability.
• Pressure rating of 365 psi for use in various fire protection systems.

Product Highlights

Designed with a hydrodynamic shape, the Victaulic FireLock elbow provides efficient flow characteristics, making it ideal for fire protection installations.

Product Information

Standard Information

• Brand: Victaulic
• Model: 001

Technical Specifications

• Angle: 90 deg
• Connection Size: 2-1/2 in
• Connection Type: Grooved
• Finish: Orange Enamel
• Material: Ductile Iron
• Material Specifications: ASTM A536, Grade 65-45-12
• Pressure Rating: 365 psi
• Sub Brand: FireLock
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved, CE EN 10311 Regulation (EU) no. 305/2011 and CCC certified
• Applications: For use exclusively with Victaulic couplings that have been listed or approved for fire protection services
