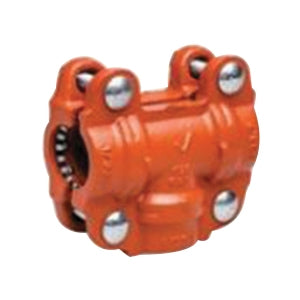

Victaulic F020P20PE0 QuickVic SD Series P20 EHP Tee

Product Description

The Victaulic F020P20PE0 is a two-inch QuickVic SD tee made of ductile iron. This fitting features an orange enamel finish and comes with a Grade EHP EPDM gasket. It is designed for use with carbon steel piping systems, ensuring a reliable and secure connection.

• Connection Size: 2 in
• Material: Ductile Iron
• Pressure Rating: 300 psi

Product Highlights

This tee is part of the QuickVic SD Installation-Ready series, which simplifies the installation process for piping systems.

Product Information

Standard Information

• Manufacturer: Victaulic
• Sub Brand: QuickVic SD, Installation-Ready

Technical Specifications

• Connection Type: Plain End
• Finish: Orange Enamel
• Length: Six and one-half inches
• Material Specifications: ASTM A536, Grade 65-45-12
• Temperature Rating: From negative thirty to two hundred fifty degrees Fahrenheit
• Standards/Certifications: ASME B31.1, B31.3, B31.9, LPCB approved, ISO 9001:2008 standard
• Applications: For use on carbon steel pipe conforming to ASTM A53, A106, A135, or schedule ten through eighty.
