Victaulic F020P10PE0 QuickVic Style P10 2 in 300 psi Ductile Iron 90 Degree Bend

Product Description

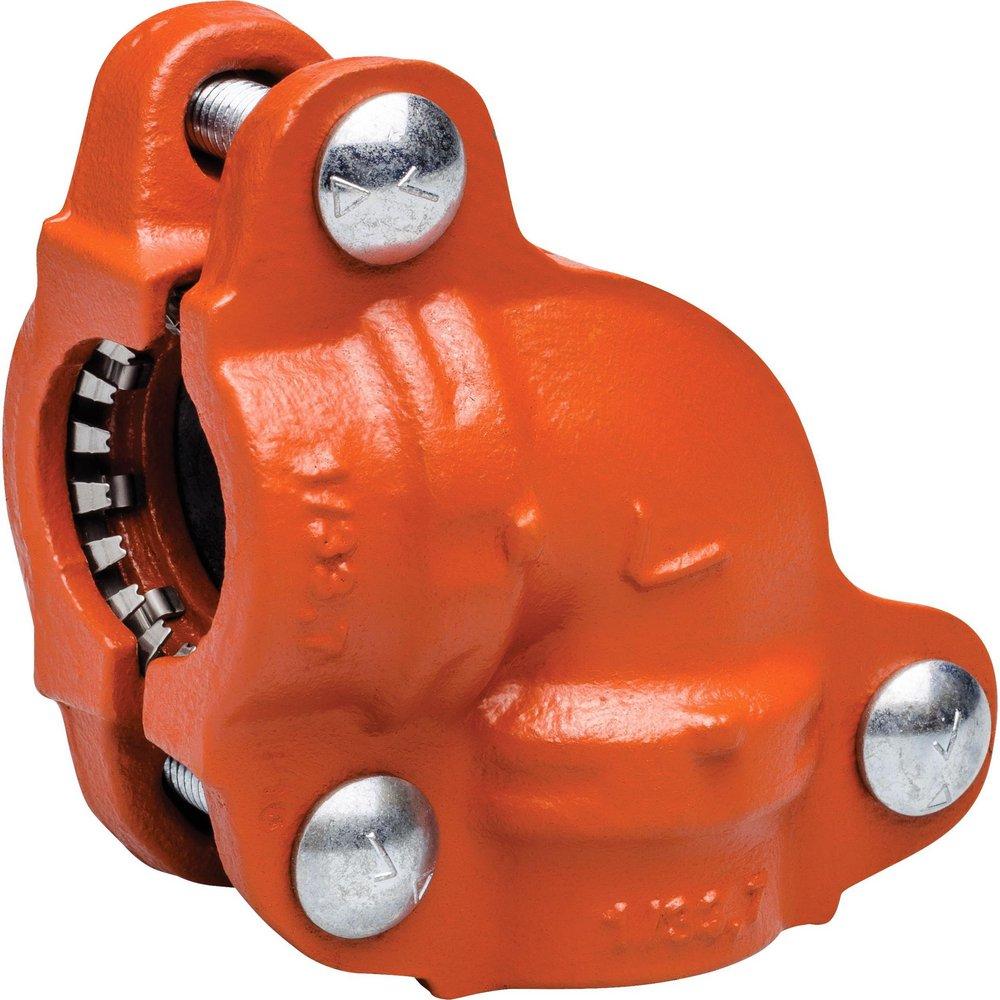

The Victaulic F020P10PE0 is a QuickVic Style P10 ductile iron 90 degree bend. It is designed for use in various piping systems and can handle a pressure rating of 300 psi. The bend is an essential component for directing pipe flow at right angles.

• QuickVic SD Installation-Ready technology for easy installation
• Compatible with carbon steel piping systems
• Temperature rating from negative thirty to two hundred fifty degrees Fahrenheit

Product Highlights

This product features a plain end connection type. It is ideal for applications in carbon steel pipe systems.

Product Information

Standard Information

• Brand: Victaulic
• MPN: F020P10PE0

Technical Specifications

• Angle: 90 deg
• Connection Size: 2 in
• Connection Type: Plain End
• Finish: Orange Enamel
• Item Name: Elbow with Grade EHP EPDM Gasket
• Length: 5.88 in
• Material: Ductile Iron
• Model: P10
• Pressure Rating: 300 psi
• Sub Brand: QuickVic SD, Installation-Ready
• Temperature Rating: -30 to 250 deg F
