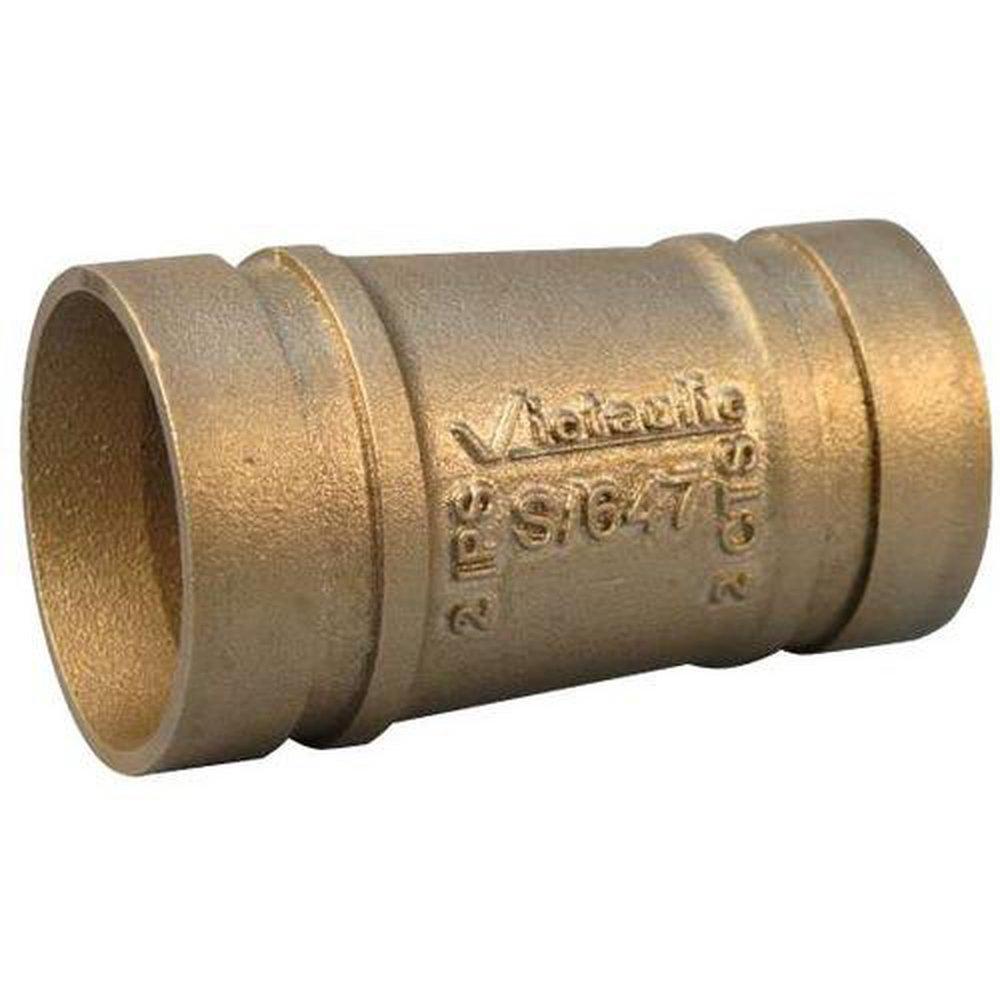

Victaulic F020647CGT FireLock Style 647 2 in. Grooved x Threaded Cast Copper Dielectric Nipple

Product Description

The Victaulic F020647CGT FireLock Style 647 is a two-inch grooved x threaded cast copper dielectric nipple. This fitting connects carbon steel or stainless steel pipes to copper tubing efficiently. The design ensures durability and reliability under high pressure.

• Pressure rated up to three hundred psi
• Connects various pipe materials with one fitting
• Available in multiple configurations

Product Highlights

This product is ideal for plumbing applications where dielectric separation is necessary. It minimizes corrosion and ensures a strong connection between different metal types.

Product Information

Standard Information

• Brand: Victaulic
• MPN: F020647CGT

Technical Specifications

• Nominal Size: 2 inches
• Connection Type: Grooved end x MNPT
• Material: Silicon copper
• Outside Diameter: 2.375 inches
• Length: 4.1 inches
• Maximum Pressure: 300 psi
• Industry Standards: UL classified in accordance with ANSI/NSF-61 and NSF 372
