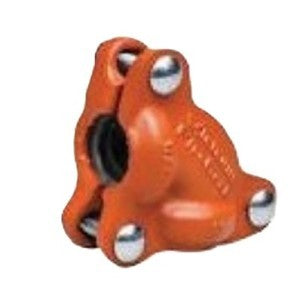

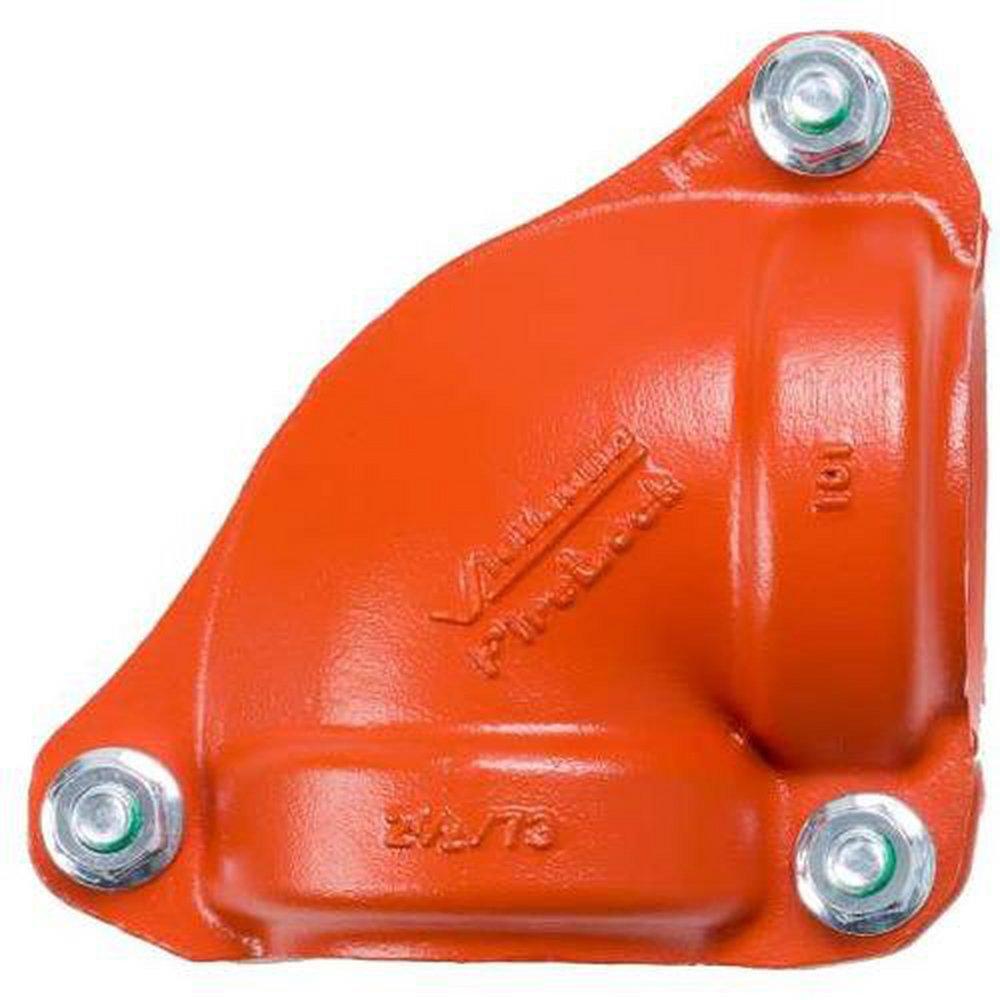

Victaulic F020101PE0 FireLock Installation-Ready Style 101 2 in. 90 Degree Sprinkler Elbow

Product Description

The VICTAULIC F020101PE0 FireLock Installation-Ready Style 101 90 Degree Sprinkler Elbow is constructed from ductile iron. Designed for DN25 sprinkler applications with pressures up to 365 psi, 2517 kPa. Available in size 2 in. It features an Installation-Ready design.

• Installation-Ready design
• Orange Enamel finish
• Ductile Iron construction

Product Highlights

The Victaulic FireLock Installation-Ready elbow is ideal for fire protection systems. It offers fast installation and dependable performance.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: F020101PE0

Technical Specifications

• Brand: Victaulic
• MPN: F020101PE0
• Material: Ductile Iron
• Application: Sprinkler
• Angle: 90 Degree
• Standards/Certifications: cULus listed, FM, VDS, LPCB approved
• ConnectionSize: 2 in
• Fitting/Connector Type: 90 deg Elbow
• Type: Install-Ready
• Nominal Size: 2 in
• End Style: Groove
• Finish: Enamel Painted
• Pressure Rating: 365 psi
• Series: 101
• Diameter (Imp): 2"
• Options: Orange
• Product Type: Elbows
• Diameter (Met): 50mm
• Model Number: 101
• Connection Ends: Grooved
• Collection: FIRELOCK
• Additional Specifications: IR
• Elbow Type: 90 Degree
