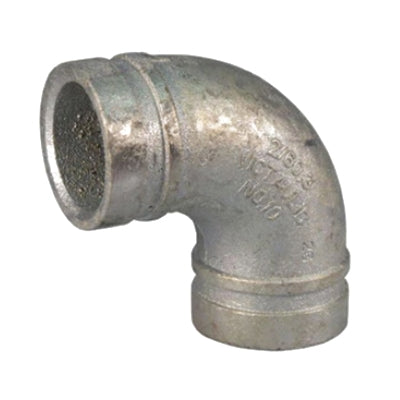

Victaulic F014010G00 10 Hot Dipped Galvanized Ductile Iron 90 deg Elbow 1-1/2 in Grooved

Product Description

The Victaulic F014010G00 is a ductile iron elbow designed to connect pipes and provide direction change in piping systems. This 90-degree elbow is made from hot dipped galvanized ductile iron and has a connection size of one and one-half inches with a grooved fitting.

• Connects pipe and adapts sizes or components
• Supplied with Victaulic OGS grooves
• Pressure rated up to 1000 psi

Product Highlights

This fitting is suitable for various applications, including use with Victaulic couplings, valves, and accessories.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Angle: 90 deg
• Connection Size: 1-1/2 in
• Connection Type: Grooved
• Finish: Hot Dipped Galvanized
• Item Name: Elbow
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 10
• Pressure Rating: 1000 psi
• Standards/Certifications: cULus listed, CTP, LPCB, VdS, FM approved, ANSI/NSF 61 and 372 certified
• Applications: Suitable for Victaulic couplings, valves, accessories and pipe with Victaulic OGS groove profile
