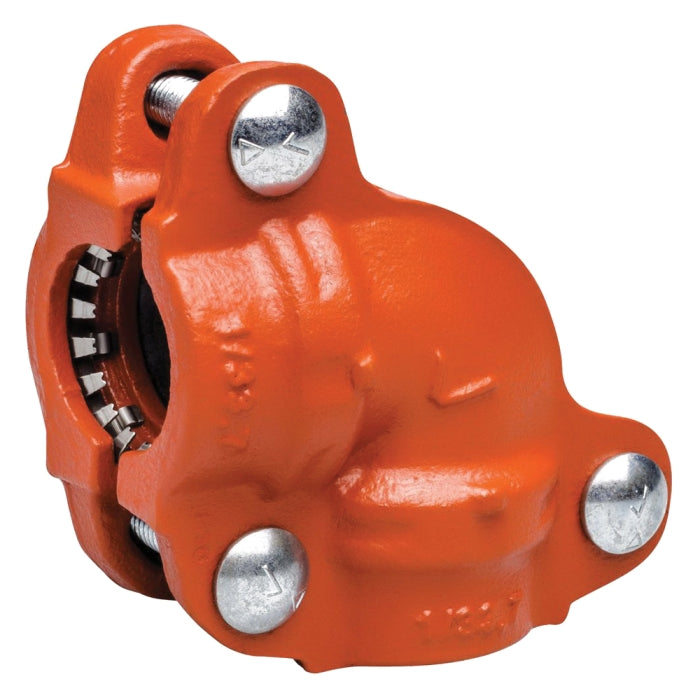

Victaulic F012P10PE0 P10 Elbow, 1-1/4 in Nominal, Ductile Iron, Orange Painted

Product Description

The Victaulic F012P10PE0 is a P10 elbow designed for joining carbon steel piping systems. This fitting is made from ductile iron and features a plain end connection. It is suited for applications that require secure and efficient joining of pipes.

• Designed for 1-1/4 inch nominal size
• 90-degree angle for optimal direction change
• Includes an EHP EPDM gasket for effective sealing

Product Highlights

This elbow is versatile for various plumbing applications, ensuring strong and reliable connections. Suitable for both commercial and industrial uses.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 1-1/4 inch
• Connection Type: Plain End
• Angle: 90 degrees
• Finish: Orange Enamel
• Item Name: Elbow with Grade EHP EPDM Gasket
• Material: Ductile Iron
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 250 degrees F
• Material Specifications: ASTM A536, Grade 65-45-12
• Sub Brand: QuickVic SD, Installation-Ready
