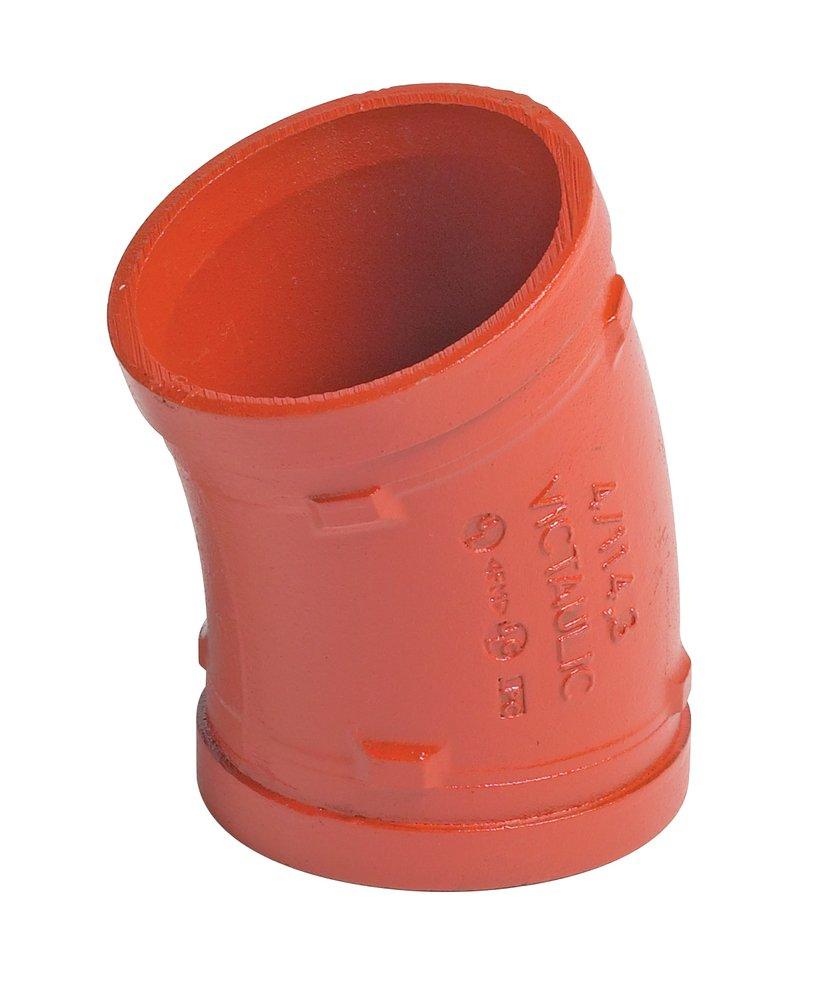

Victaulic F012012P0C FireLock Style 12 1-1/4 in. Grooved Painted 22-1/2 Degree Elbow

Product Description

The Victaulic F012012P0C is a grooved elbow designed for effective pipe connections. This fitting is suitable for directional changes in piping systems, specifically for applications that require fittings with grooves. It is made from ductile iron with an orange enamel finish, ensuring durability and resistance to wear.

• Compatible with Victaulic couplings and accessories
• Pressure rating up to 1000 psi
• Designed to fit pipes sized 1-1/4 inches

Product Highlights

This elbow fitting features a 22.5-degree angle and conforms to ANSI/NSF standards, making it suitable for various fluid transfer applications.

Product Information

Standard Information

• Brand: Victaulic
• Model: 12

Technical Specifications

• Angle: 22-1/2 degrees
• Connection Size: 1-1/4 inches
• Connection Type: Grooved
• Finish: Orange Enamel
• Material: Ductile Iron
• Material Specifications: ASTM A536, Grade 65-45-12
• Pressure Rating: 1000 psi
• Applications: Compatible with Victaulic couplings, valves, accessories, and pipes featuring the Victaulic OGS groove profile
