Victaulic F010P20PE0 QuickVic Tee 1 in Replacement MPN

Product Description

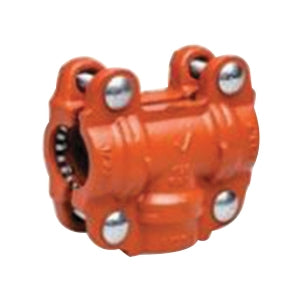

The Victaulic F010P20PE0 is a QuickVic Tee made of ductile iron with an orange enamel finish. It has a connection size of one inch and features a plain end for easy installation. This product is designed for carbon steel piping systems and includes a Grade EHP EPDM gasket.

• Connection Size: One inch
• Pressure Rating: 300 psi
• Temperature Rating: Minus thirty to two hundred fifty degrees Fahrenheit

Product Highlights

The QuickVic installation technology simplifies the installation process, helping to reduce overall labor time. This tee is part of the QuickVic SD range, ensuring reliability in high-pressure applications.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: P20
• Material: Ductile Iron
• Gasket Type: Grade EHP EPDM
• Length: Four and one half inches
• Finish: Orange Enamel
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: ASME B31.1, B31.3, B31.9, LPCB approved, ISO 9001:2008
• Applications: For use on carbon steel pipe conforming to ASTM A53, ASTM A106, ASTM A135 or schedule 10 through 80
