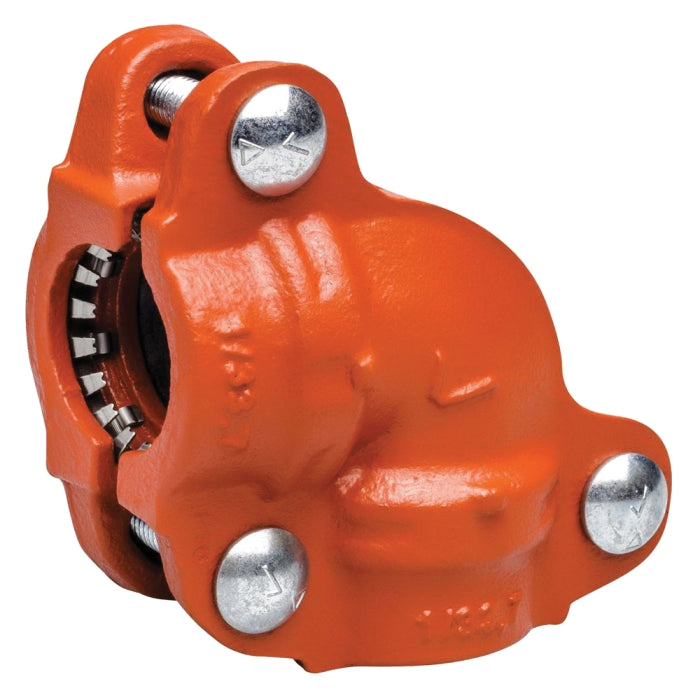

Victaulic F010P10PE0 QuickVic SD Installation-Ready P10 Orange Enamel Ductile Iron 90 deg Elbow with Grade EHP EPDM Gasket 1 in

Product Description

The Victaulic F010P10PE0 is a QuickVic SD Installation-Ready ductile iron elbow featuring a ninety-degree angle. This fitting is designed for use with carbon steel piping systems and comes with a grade EHP EPDM gasket for a secure seal. Its plain end connection simplifies installation.

• Economical pipe joining solution for carbon steel piping
• Patented Leak-If-Not-Tightened technology
• Includes a grade EHP EPDM gasket

Product Highlights

This elbow fitting is suitable for various applications in plumbing and HVAC. It supports efficient installation and reliable performance.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VIP10.1

Technical Specifications

• Angle: 90 deg
• Connection Size: 1 in
• Connection Type: Plain End
• Finish: Orange Enamel
• Material: Ductile Iron
• Model: P10
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 250 deg F
• Standards/Certifications: ASME B31.1, B31.3 and B31.9, LPCB approved, ISO 9001:2008 standard
• Applications: For use with carbon steel pipe
