Victaulic F010146P00 Firelock Style 146 1 in. Grooved 365 psi Cap

Product Description

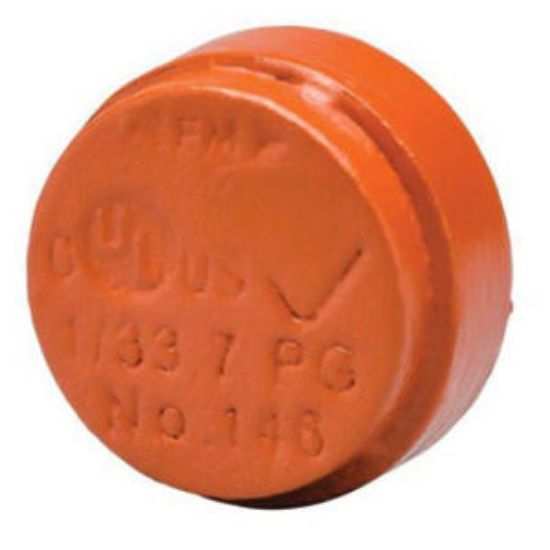

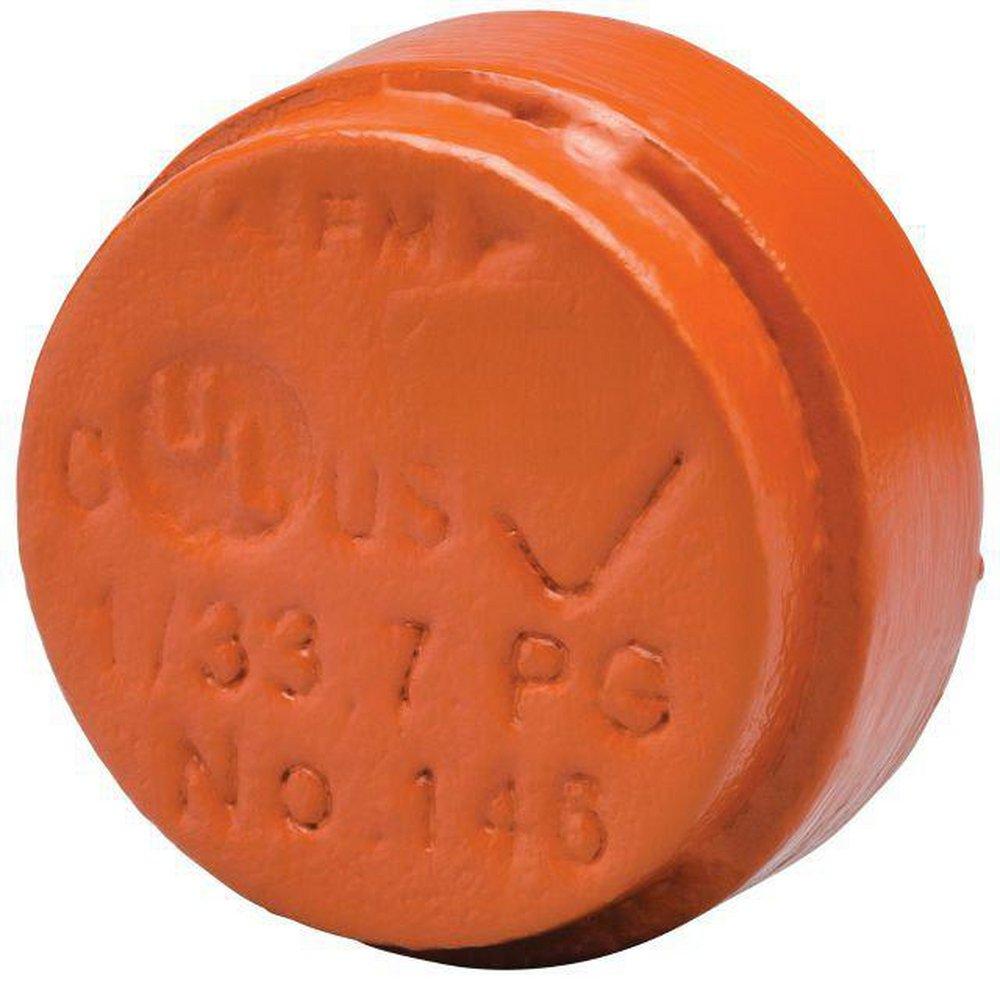

The VICTAULIC F010146P00 Firelock Style 146 is a 1 in. grooved cap with a pressure rating of 365 psi. Constructed from ductile iron with an orange enamel finish, this cap is designed for use with fire sprinkler pipes. It has a 1.315 in OD and a 0.55 in thickness.

• Victaulic FireLock Innovative Groove System
• Ductile Iron Conforming to ASTM A536 Grade 65-45-12
• Maximum pressure of 365 PSI

Product Highlights

The VICTAULIC F010146P00 is a durable and reliable pipe cap suitable for fire sprinkler systems, featuring a grooved connection and a robust ductile iron construction.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: F010146P00

Technical Specifications

• Fitting/Connector Type: Cap
• Nominal Size: 1 In
• Pressure Rating: 365 psi
• Material: Ductile Iron
• Finish: Orange Enamel
• Series: 146
• Thickness: 0.55 in
• End Style: Groove
• Brand: Victaulic®
• Manufacturer: Victaulic
• Item Name: Pipe Cap
• Series/Model: Model 146
• Material Standard: ASTM A536
• Finish/Color: Orange Enamel Painted
• Outside Diameter: 1.315 IN
• Maximum Pressure: 365 PSI
• Industry Standards: cULus Listed, FM Approved, LPCB, CE, UKCA, VdS
• Coating: Orange Enamel;Painted
• End Connection: IGS
• End Connection 1: IGS
• Fitting Size 1: 1 in.
• Fitting Sizes: 1 in.
• Application: Fire Sprinkler Pipes
• Product Type: Sprinkler Caps
• Connection Type: Grooved
• For Use With: 1 in or DN25 Sprinkler Pipes
• Material Construction: Iron
• Specifications - ASTM: ASTM A-536 Grade 65-45-12
• Specifications - UL Listed: Yes
