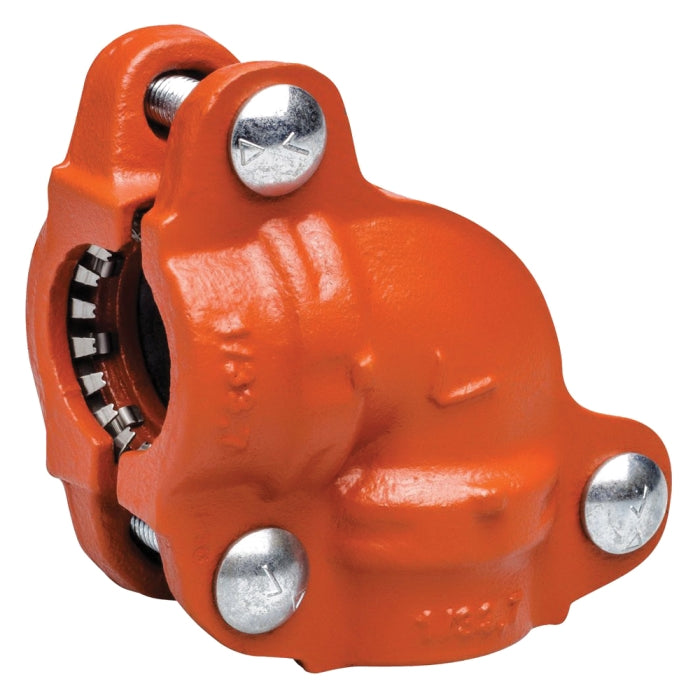

Victaulic F006P10PE0 QuickVic SD Installation-Ready Ductile Iron 90 deg Elbow with Grade EHP EPDM Gasket

Product Description

The Victaulic F006P10PE0 is a QuickVic SD installation-ready ductile iron elbow. This product features a ninety-degree angle with a three-fourths inch plain end connection. It is designed to meet the needs of carbon steel piping systems, enhancing efficiency in installation.

• QuickVic SD technology for easy installation
• Grade EHP EPDM gasket ensures a secure seal
• Durable ductile iron construction for reliable performance

Product Highlights

This fitting provides an efficient and cost-effective solution for joining pipes in various applications.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Angle: 90 deg
• Connection Size: 3/4 in
• Connection Type: Plain End
• Finish: Orange Enamel
• Item Name: Elbow with Grade EHP EPDM Gasket
• Length: 4 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: P10
• Pressure Rating: 300 psi
• Sub Brand: QuickVic SD, Installation-Ready
• Temperature Rating: -30 to 250 deg F
