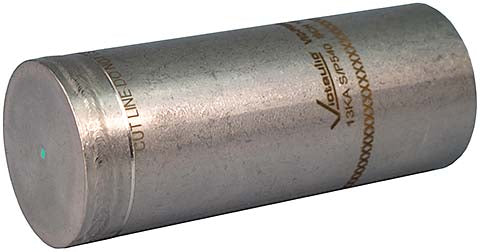

Victaulic F004540X05 Vic-Press Style P540 1/2 in. Press Schedule 10S 304 Stainless Steel Cap

Product Description

The Victaulic F004540X05 is a Vic-Press Style P540 stainless steel cap. It is designed for use with Schedule 10S Type 304 and 304L stainless steel piping. This cap provides a fast, easy, and reliable method for joining small diameter pipes. It is suitable for applications requiring a maximum pressure of five hundred psi.

• Made to meet ASME requirements for ANSI Class 150 systems.
• Available sizes range from one half inch to two inches.
• Ideal for pressures up to five hundred psi.

Product Highlights

Effective solution for press joining stainless steel piping.

Product Information

Standard Information

• Material: 304 Stainless Steel
• Product Type: Cap

Technical Specifications

• MPN: F004540X05
• Pipe Size: 1/2 in.
• Pressure Rating: 500 psi / 3447 kPa / 34 bar
• ASME Compliance: ANSI Class 150
• Suitable Pipe Types: Schedule 5S or 10S
• Compatible with: Type 304/304L Stainless Steel
• Dimensions: Varies by size
• Item Number: 4201301
