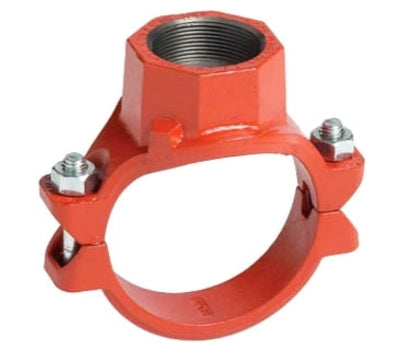

Victaulic CF38920PE0 Mechanical-T 8 x 4 in.

Product Description

The Victaulic CF38920PE0 Mechanical-T serves to make branch connections at any point on a pipe where a hole can be cut. This product features a female connection and is made from ductile iron, meeting ASTM A536, Grade 65-45-12 standards. It is UL and ULC Listed and FM Approved, ensuring safety and reliability.

• Accommodates a maximum pressure of 500 PSI.
• Operates in temperatures ranging from -30 to +230 degrees Fahrenheit.
• Includes bolts, nuts, and an EPDM Grade E gasket for a secure seal.

Product Highlights

The Victaulic CF38920PE0 Mechanical-T facilitates easy and effective branching in piping systems.

Product Information

Standard Information

• Brand: Victaulic
• MPN: CF38920PE0

Technical Specifications

• Selling Size: 8 x 4 inches
• Color: Orange
• Maximum Pressure Rating: 500 PSI
• Specifications Met: ASTM A536, Grade 65-45-12, UL, ULC Listed, FM Approved
• Material: Ductile Iron
• Includes: Bolts, Nuts, and EPDM Gasket
• Maximum Temperature Rating: +230 degrees Fahrenheit
• Length: 12.42 inches
• Connection Size: 8 inches
• Minimum Temperature Rating: -30 degrees Fahrenheit
• Catalog Number: CF38920PE0
• Weight: 1 lb
