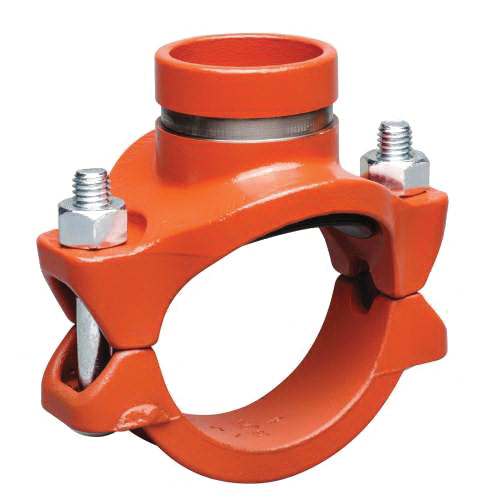

Victaulic CF33920PE1 Mechanical-T Coupling with 3 in Grooved Bolted Branch Outlet

Product Description

The Victaulic CF33920PE1 is a Mechanical-T coupling designed for pipe applications. This product allows a direct branch connection at locations where a hole can be cut into the pipe. A gasket provides a reliable seal on the pipe's outside diameter.

• Provides a direct branch connection where a hole can be cut in the pipe.
• Pressure responsive gasket ensures a tight seal.
• Available in grooved and female threaded outlet styles.

Product Highlights

This coupling is suitable for various applications and is made from ductile iron with an orange enamel finish.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 8 x 3 in
• Finish: Orange Enamel
• Hole Diameter: 3-1/2 in
• Item Name: Mechanical-T Coupling with 3 in Grooved Bolted Branch Outlet and Grade E EPDM Gasket
• Length: 12.42 in
• Material: Ductile Iron
• Model: 920
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM approved, VNIPO
