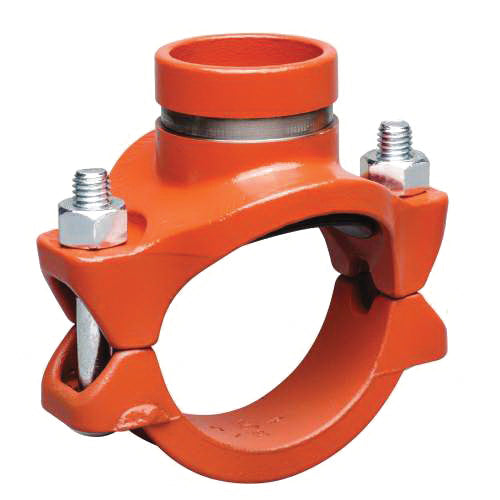

Victaulic CF32920PE1 Mechanical-T Coupling with 2-1/2 in Grooved Bolted Branch Outlet

Product Description

The Victaulic CF32920PE1 is a durable mechanical-T coupling designed for fire protection systems. It features a two and one-half inch grooved bolted branch outlet. This product is made from ductile iron and coated with orange enamel for protection.

• Provides a direct branch connection at cut locations in the pipe
• Pressure responsive gasket ensures a reliable seal
• Complies with UL, ULC standards, and is FM approved

Product Highlights

This coupling is ideal for installations requiring a strong mechanical connection and a reliable seal. It supports various connection types, including grooved and female threaded outlets, suitable for multiple applications.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 920
• Connection Size: 8 x 2-1/2 in
• Hole Diameter: 2-3/4 in
• Length: 12.42 in
• Material: Ductile Iron
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 degrees F
• Finish: Orange Enamel
• Gasket: Grade E EPDM
