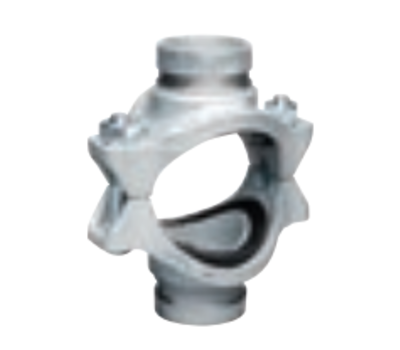

Victaulic CF30920GE0 Mechanical-T Bolted Branch Outlet 8 x 2 in

Product Description

The Victaulic CF30920GE0 is a Mechanical-T bolted branch outlet designed for direct branch connections in piping systems. It works well with SCH 10 and SCH 40/STD schedule ratings. Constructed from ductile iron with a hot-dipped galvanized finish, it provides durability. This product features a Grade E EPDM gasket for effective sealing under pressure conditions. It supports a maximum pressure of 500 psi and can operate within temperatures from minus thirty to two hundred thirty degrees Fahrenheit.

• Direct branch connection at cut pipe location.
• Grade E EPDM gasket for sealing with pressure.
• Temperature range from minus thirty to two hundred thirty degrees Fahrenheit.

Product Highlights

This outlet allows for reliable branch connections, making it suitable for various plumbing tasks.

Product Information

Standard Information

• Brand: Victaulic
• Connection Type: FNPT

Technical Specifications

• Finish: Hot Dipped Galvanized
• Nominal Size: 8 x 2 inches
• Material: Ductile Iron
• Gasket Material: Grade E EPDM
• Pressure Rating: 500 psi
• Schedule Rating: SCH 10 and SCH 40/STD
• Temperature Rating: -30 to 230 degrees F
• Dimensions: 12.42 inches W x 4.5 inches D
• UPC: 688304110818
