Victaulic CES5892NGE0 - 920N Hot Dipped Galvanized Ductile Iron Threaded Mechanical-T Coupling with 1-1/2 in FPT Bolted Branch Outlet and Grade E EPDM Gasket - VI920NG.6.112F

Product Description

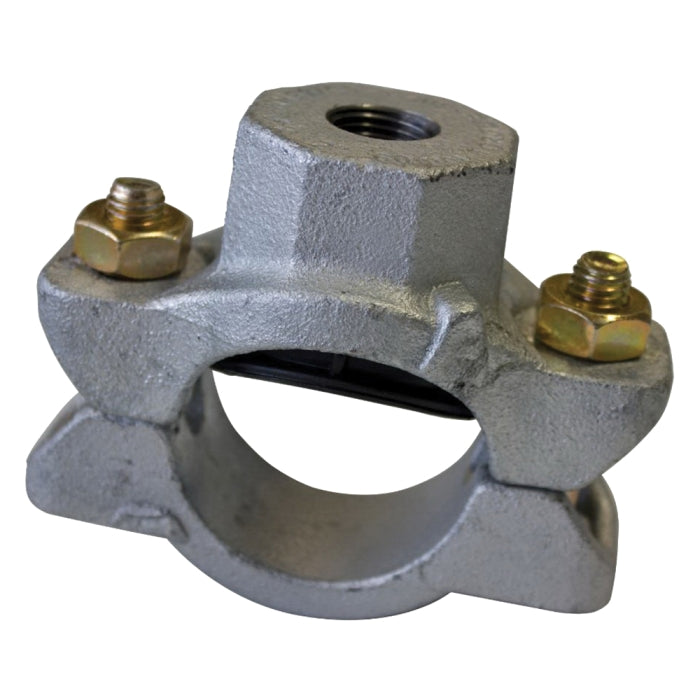

The Victaulic CES5892NGE0 is a mechanical T coupling made from hot-dipped galvanized ductile iron. This product features a one and a half inch female pipe thread bolted branch outlet and is suitable for use in fire protection applications. It can manage a pressure rating of five hundred psi and has a temperature rating of negative thirty to two hundred thirty degrees Fahrenheit.

• Constructed with ductile iron material
• Includes a bolted branch outlet for secure connections
• Pressure and temperature rated for various applications

Product Highlights

Ideal for fire protection and plumbing, this coupling ensures strong connections and durability under pressure.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI920NG.6.112F

Technical Specifications

• Model: 920N
• Connection Size: 6 x 1-1/2 in
• Finish: Hot Dipped Galvanized
• Item Name: Grooved Mechanical-T Coupling with 1-1/2 in FPT Bolted Branch Outlet and Grade E EPDM Gasket
• Length: 9.15 in
• Hole Diameter: 2 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material: Ductile Iron
