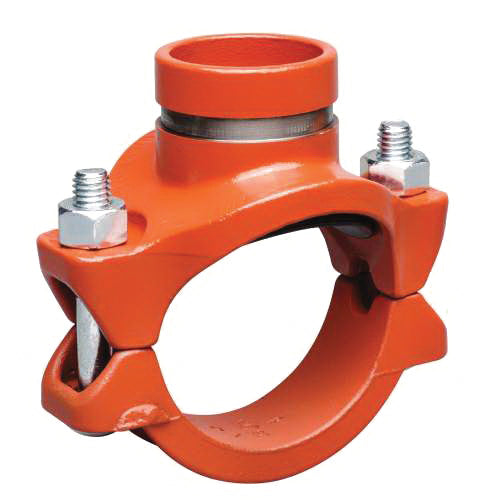

Victaulic CE79920PE1 Mechanical-T Coupling with 4 in Grooved Bolted Branch Outlet and Grade E EPDM Gasket

Product Description

The Victaulic CE79920PE1 is a mechanical-T coupling designed for use in fire protection systems. This component provides a robust branch connection at locations where a hole can be cut into the pipe. The mechanical coupling uses a pressure-responsive gasket to ensure a secure seal on the pipe's exterior. It's suitable for use with various connection sizes and materials.

• Direct branch connection capability
• Pressure-responsive gasket for reliable sealing
• UL, ULC listed, and FM approved

Product Highlights

This coupling is ideal for fire protection applications, offering versatility and reliability in installations.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: VI920.6.4G

Technical Specifications

• Connection Size: 6 x 4 in
• Finish: Orange Enamel
• Hole Diameter: 4-1/2 in
• Material: Ductile Iron
• Length: 10.51 in
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM approved, VNIPO
