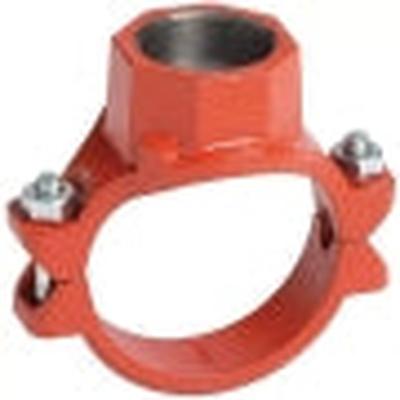

Victaulic CE65920PE0 920 Orange Enamel Ductile Iron Threaded Mechanical-T Coupling with 2-1/2 in FPT Bolted Branch Outlet and Grade E EPDM Gasket

Product Description

The Victaulic CE65920PE0 is a mechanical T coupling designed for use in fire protection systems. It features a two and one-half inch FPT bolted branch outlet and a grade E EPDM gasket. This coupling is made from ductile iron with an orange enamel finish to ensure durability and resistance to corrosion.

• Connection size of six inches by two and one-half inches
• Temperature rating from negative thirty to two hundred thirty degrees Fahrenheit
• Pressure rating of five hundred psi

Product Highlights

This coupling is used in systems requiring reliable sealing and strength. Ideal for fire protection applications, it enhances system integrity.

Product Information

Standard Information

• Brand: Victaulic
• Model: 920

Technical Specifications

• Finish: Orange Enamel
• Material: Ductile Iron
• Connection Size: 6 x 2-1/2 in
• Hole Diameter: 2-3/4 in
• Length: 10.51 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
