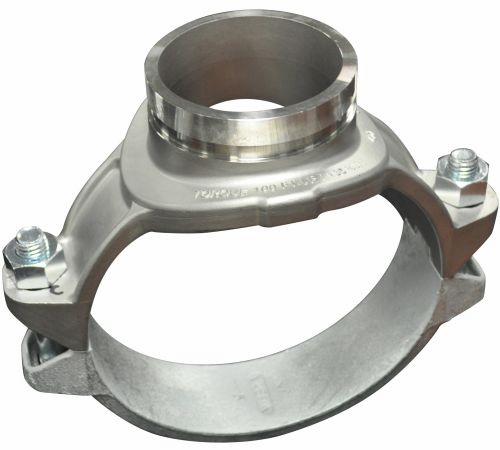

Victaulic CE61422XE0 Mechanical-T Bolted Branch Outlet 6 x 2 in (Replacement CE61422XE0)

Product Description

Victaulic CE61422XE0 is a mechanical-T bolted branch outlet designed for 6 x 2 in pipe connections with FNPT branching. The fitting uses a pressure-responsive Grade E EPDM gasket and combines a 316 stainless steel upper clamp with a ductile iron lower clamp, finished hot-dipped galvanized. It fits a 2.5 to 2.63 in hole, includes two 5/8-11 x 5 in carbon steel bolts, and is rated to 300 psi and -30 to 230 °F.

• Rated to 300 psi (2068 kPa | 21 bar) with temperature range -30 to 230 °F
• 316 stainless steel upper clamp, ductile iron lower clamp, Grade E EPDM gasket; hot-dipped galvanized finish
• Designed for 6 x 2 in pipes with FNPT branch; fits 2.5–2.63 in hole; includes (2) 5/8-11 x 5 in carbon steel bolts

Product Highlights

Bolted mechanical tee for 6 x 2 in piping; pressure-responsive EPDM gasket; hot-dipped galvanized stainless steel construction; fits SCH 10 and SCH 40/STD, 300 psi rating.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: CE61422XE0
• Country of Origin: Domestic
