Victaulic CE09920PE1 Mechanical-T Coupling with 3 in Grooved Bolted Branch Outlet

Product Description

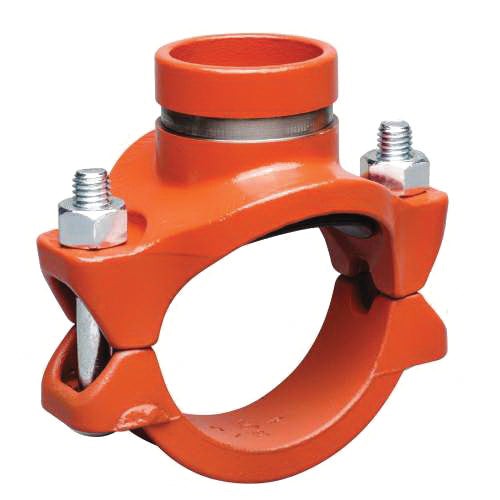

The Victaulic CE09920PE1 is a mechanical-T coupling designed to create a branch connection in piping systems. This unit features a three inch grooved bolted branch outlet and uses a grade E EPDM gasket for effective sealing. The product is made from ductile iron with an orange enamel finish, ensuring durability and longevity.

• Direct branch connection at any location where a hole can be cut in pipe.
• Pressure responsive gasket for a reliable seal.
• Galvanized housing options available.

Product Highlights

This mechanical-T outlet is ideal for fire protection systems and can meet various cross-type connection needs.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 920
• Length: 9.7 inches
• Material: Ductile Iron
• Finish: Orange Enamel
• Connection Size: 5 x 3 inches
• Hole Diameter: 3-1/2 inches
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 degrees F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM approved, VNIPO
