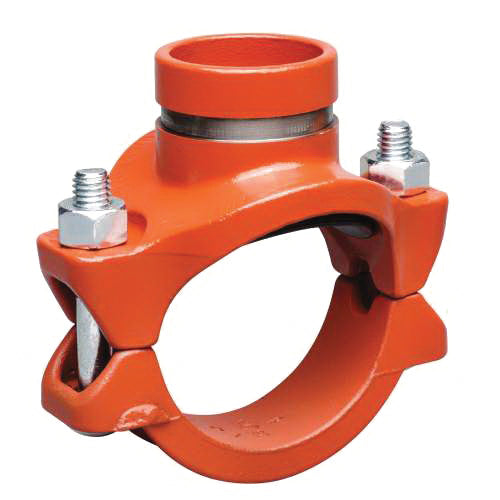

Victaulic CE05920PE1 Mechanical-T Coupling with 2-1/2 in Grooved Bolted Branch Outlet 920

Product Description

The Victaulic CE05920PE1 is a mechanical-T coupling designed for fire protection applications. This product features a two-and-a-half inch grooved bolted branch outlet and is constructed from ductile iron with an orange enamel finish. The coupling is equipped with a Grade E EPDM gasket for reliable sealing. It provides a direct branch connection at any location where a hole can be cut in the pipe.

• Mechanical-T design for easy installation
• Grade E EPDM gasket ensures a tight seal
• Pressure rating of five hundred psi

Product Highlights

This coupling allows for quick installation and connects easily to various pipe systems. The pressure responsive gasket seals effectively on the pipe's outer diameter for dependable performance.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 920
• Connection Size: 5 x 2-1/2 in
• Finish: Orange Enamel
• Hole Diameter: 2-3/4 in
• Length: 9.7 in
• Material: Ductile Iron
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: UL, ULC listed, FM approved, VNIPO
