Victaulic CE02920PE1 Mechanical-T Coupling 5 x 2 in

Product Description

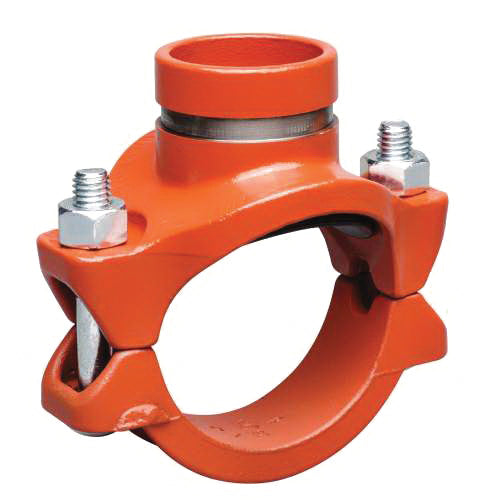

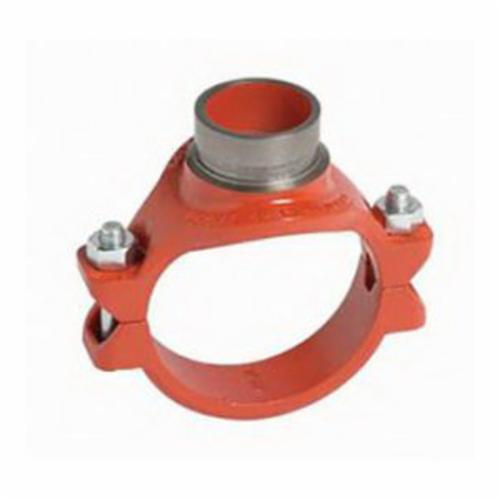

The VICTAULIC CE02920PE1 Mechanical-T Coupling provides a direct branch connection at any location a hole can be cut in pipe. It features a pressure responsive gasket that seals on the pipe outside diameter. This ductile iron coupling has a 5 x 2 inch connection size and is coated with orange enamel. Rated to 500 psi and for temperatures from -30 to 230 deg F.

• Provides a direct branch connection at any location where a hole can be cut in the pipe
• A pressure responsive gasket provides the seal
• Gasket - grade "E" EPDM (green color code)

Product Highlights

The VICTAULIC Mechanical-T Coupling allows for branch connections on ductile iron pipes. It is easy to install and provides a secure, leak-proof seal.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: CE02920PE1

Technical Specifications

• Connection Size: 5 x 2 in
• Finish: Orange Enamel
• Hole Diameter: 2-1/2 in
• Item Name: Mechanical-T Coupling with 2 in Grooved Bolted Branch Outlet and Grade "E" EPDM Gasket
• Length: 9.7 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 920
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Bolt Material: Carbon Steel
• Clamp Material: Ductile Iron
• Connection Type: Grooved
• Gasket Material: Grade E EPDM
• Nominal Size: 5 X 2 IN
• Schedule Rating: SCH 10 and SCH 40/STD
• Series: Style 920
• Material Standard: ASTM A536 Grade 65-45-12
• Industry Standards: UL And ULC Listed, VDS Compliant, VNIIPO, LPCB, FM Approved
• Other Physical Dimension: 4.38 IN Width, 2-1/2 IN Hole Diameter, 4-3/4 IN Center Of Run To End Of Fitting
